TMP90C041

PinoutSpecifications Symbol Parameter Rating Unit VCC Supply voltage -0.5 ~ + 7 V VIN Input voltage -0.5 ~ VCC + 0.5 V PD Power dissipation (Ta = 70 °C) F 500 mW F 600 TSOLDER Soldering temperature (10s) 260 °C TSTG ...

product image

TMP90C041 Picture
SeekIC No. : 004524686 Detail

TMP90C041: PinoutSpecifications Symbol Parameter Rating Unit VCC Supply voltage -0.5 ~ + 7 V VIN Input voltage -0.5 ~ VCC + 0.5 V PD Power dissipation (Ta = ...

floor Price/Ceiling Price

Part Number:
TMP90C041
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Pinout

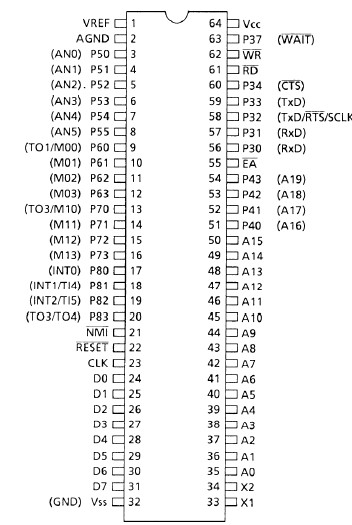

  Connection Diagram


Specifications

Symbol
Parameter
Rating
Unit
VCC
Supply voltage
-0.5 ~ + 7
V
VIN
Input voltage
-0.5 ~ VCC + 0.5
V
PD
Power dissipation (Ta = 70 °C)
F 500
mW
F 600
TSOLDER
Soldering temperature (10s)
260
°C
TSTG
Storage temperature
-65 ~ 150
°C
TOPR
Operating temperature
-20 ~ 70
°C



Description

The TMP90C041 is a high-speed advanced 8-bit microcontroller applicable to a variety of equipment.

With its 8-bit CPU, A/D converter, multi-function timer/ event counter and general-purpose serial interface integrated into a single CMOS chip, the TMP90C041 allows the expansion of external memories for programs (up to 64K byte) and data (1M byte).

The TMP90C041N is a 64-pin shrink DIP product. (SDIP64-P750)

The TMP90C041F is a 64-pin flat package product. (QFP64-P1420A)

The characteristics of the TMP90C041 include: (1) Powerful instructions: 163 basic instructions, including Multiplication, division, 16-bit arithmetic operations, bit manipulation instructions (2) Minimum instruction executing time: 320ns (at 12.5MHz oscillation frequency) (3) Memory expansion External program memory: 64K byte External data memory: 1M byte (4) 8-bit A/D converter (6 channels) (5) General-purpose serial interface (1 Channel) Asynchronous mode, I/O interface mode (6) Multi-function 16-bit timer/event counter (1 channel) (7) 8-bit timers (4 channels)  (8) Stepping motor control port (2 channels) (9) Input/Output ports (28 pins) (10) Interrupt function: 10 internal interrupts and 4 external interrupts (11) Micro Direct Memory Access ( mDMA) function (11 channels) (12) Watchdog timer (13) Standby function (4 HALT modes)
