TM497MBK36H

 Organization . . . 4 194 304 * 36
 Single 5-V Power Supply (±10% Tolerance)
 72-Pin Single-In-Line Memory Module (SIMM) for Use With Sockets
 Uses Eight 16M-bit Dynamic RAMs (DRAMs) in Plastic Small-Outline J-Lead (SOJ) Packages and Four 4M-bit DRAMs in Plastic SOJ Packages
 Long Refresh Period . . . 32 ms (2 048 Cycles)†
 All Inputs, Outputs, and Clocks are Fully TTL Compatible
 Common CAS Control for Nine Common Data-In and Data-Out Lines in Four Blocks
 Separate RAS Control for Eighteen Data-In and Data-Out Lines in Two Blocks
 3-State Output
 Performance Ranges:
                             ACCESS       ACCESS          ACCESS          READ
                               TIME             TIME               TIME              OR
                               t_RAC             t_CAC                t_AA             W_RITE
                                                                          CYCLE
                               (MAX)           (MAX)               (MAX)            (MIN)
'497MBK36H/ I-60 60 ns             15 ns               30 ns          110 ns
'497MBK36H/ I-70 70 ns             18 ns               35 ns          130 ns
'497MBK36H/ I-80 80 ns             20 ns               40 ns          150 ns
 Low Power Dissipation
 Operating Free-Air Temperature Range . . . 0°C to 70°C
 Presence Detect
 Gold-Tabbed Version Available TM497MBK36H
 Tin-Lead (Solder) Tabbed Version Available: TM497MBK36I

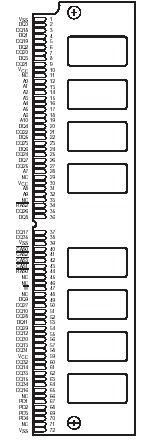

The TM497MBK36H/ I is a 144M-bit dynamic random-access memory (DRAM) device organized as four times 4194304 × 9 (bit 9 generally is used for parity) in a 72-pin leadless single-in-line memory module (SIMM). The SIMM is composed of eight TMS417400ADJ, 4 194 304 × 4-bit DRAMs in 24/26-lead plastic SOJ packages, and four TMS44100DJ, 4 194 304 × 1-bit DRAMs in 20/26-lead plastic SOJ packages mounted on a substrate with decoupling capacitors.  TMS417400ADJ and TMS44100DJ are described in the TMS417400A and TMS44100 data sheets (literature numbers SMKS889 and SMHS561, respectively).

The TM497MBK36H/ I is available in a double-sided, BK, leadless module for use with sockets. The TM497MBK36H/ I featuresRAS access times of 60, 70, and 80 ns. This device is characterized for operation from 0°C to 70°C.
