TLV3501

Features: HIGH SPEED: 4.5ns RAIL-TO-RAIL I/O SUPPLY VOLTAGE: +2.7V to +5.5V PUSH-PULL CMOS OUTPUT STAGE SHUTDOWN (TLV3501 only) MICRO PACKAGES: SOT23-6 (single) SOT23-8 (dual) LOW SUPPLY CURRENT: 3.2mAApplication AUTOMATIC TEST EQUIPMENT WIRELESS BASE STATIONS THRESHOLD DETECTOR ZERO-CROSSING DET...

product image

TLV3501 Picture
See larger image
SeekIC No. : 004522480 Detail

TLV3501: Features: HIGH SPEED: 4.5ns RAIL-TO-RAIL I/O SUPPLY VOLTAGE: +2.7V to +5.5V PUSH-PULL CMOS OUTPUT STAGE SHUTDOWN (TLV3501 only) MICRO PACKAGES: SOT23-6 (single) SOT23-8 (dual) LOW SUPPLY CURRENT: 3...

TLV3501 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TLV3501
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

HIGH SPEED: 4.5ns
RAIL-TO-RAIL I/O
SUPPLY VOLTAGE: +2.7V to +5.5V
PUSH-PULL CMOS OUTPUT STAGE
SHUTDOWN (TLV3501 only)
MICRO PACKAGES:
   SOT23-6 (single)
   SOT23-8 (dual)
LOW SUPPLY CURRENT: 3.2mA


Application

AUTOMATIC TEST EQUIPMENT
WIRELESS BASE STATIONS
THRESHOLD DETECTOR
ZERO-CROSSING DETECTOR
WINDOW COMPARATOR


Pinout

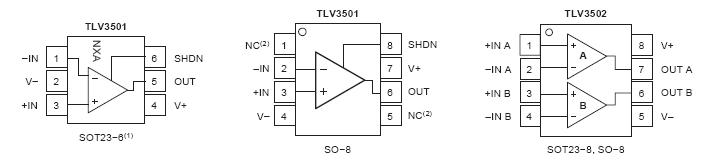

Connection Diagram


Specifications

Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +5.5V
Signal Input Terminals, Voltage . . . . . (V−) − 0.3V to (V+) + 0.3V
Signal Input Terminals, Current  . . . . . . . . . . . . . . . . . . . . . 10mA
Output Short Circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74mA
Operating Temperature . . . . . . . . . . . . . . . . . . . −40°C to +125°C
Storage Temperature . . . . . . . . . . . . . . . . . . . . . −65°C to +150°C
Junction Temperature  . . . . . . . . . . . . . . . . . . . . . . . . . . . . +150°C
Lead Temperature (soldering, 10s) . . . . . . . . . . . . . . . . . . +300°C
ESD Rating (Human Body Model) . . . . . . . . . . . . . . . . . . . . 3000V
Charged-Device Model (CDM) . . . . . . . . . . . . . . . . . . . . . . . . . 500V


Description

The TLV3501 family of push-pull output comparators feature a fast 4.5ns propagation delay and operation from +2.7V to +5.5V. Beyond-the-rails input common-mode range makes it an ideal choice for low-voltage applications.The rail-to-rail output directly drives either CMOS or TTL logic. Microsize packages provide options for portable and space-restricted applications. The single (TLV3501) is available in SOT23-6 and SO-8 packages. The dual (TLV3502) comes in the SOT23-8 and SO-8 packages.
