TLV3011

Features:

LOW QUIESCENT CURRENT: 5A (max)
INTEGRATED VOLTAGE REFERENCE: 1.242V
INPUT COMMON-MODE RANGE:200mV Beyond Rails
VOLTAGE REFERENCE INITIAL ACCURACY: 1%
OPEN-DRAIN LOGIC COMPATIBLE OUTPUT:TLV3011
PUSH-PULL OUTPUT: TLV3012
 LOW-SUPPLY VOLTAGE: 1.8V to 5.5V
FAST RESPONSE TIME: 6s Propagation Delay
   with 100mV Overdrive (TLV3011: R _PULL-UP = 10k)
  MicroSIZE PACKAGES: SOT23-6 and SC70-6


Application

BATTERY-POWERED LEVEL DETECTION
DATA ACQUISITION
SYSTEM MONITORING
OSCILLATORS
SENSOR SYSTEMS:
    Smoke Detectors, Light Sensors, Alarms

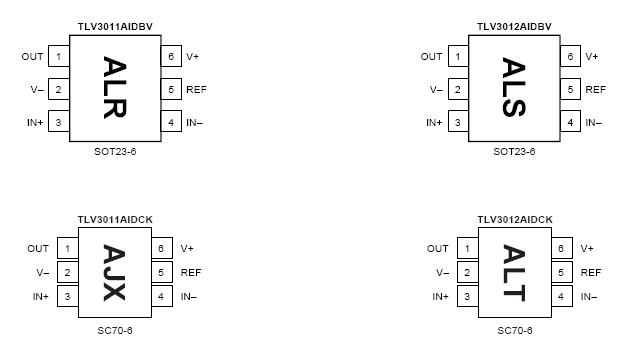

Pinout




Specifications

Supply Voltage .................................................................................... +7V
Signal Input Terminals ,   Voltage  ........................... 0.5V to (V+) + 0.5V
                                        Current  .................................................. ±10mA
Output Short-Circuit  .............................................................. Continuous
Operating Temperature .................................................. 55°C to +150°C
Storage Temperature ..................................................... 55°C to +150°C
Junction Temperature .................................................................... +150°C
Lead Temperature (soldering, 10s) ............................................... +300°C
ESD Rating (Human Body Model) .................................................. 2000V


Description

The TLV3011 is a low-power, open-drain output comparator;the TLV3012 is a push-pull output comparator. Both feature an uncommitted on-chip voltage reference. Both have 5A (max) quiescent current, input common-mode range 200mV beyond the supply rails, and single-supply operation from 1.8V to 5.5V. The integrated 1.242V series voltage reference offers low 100ppm/°C (max) drift, is stable with up to 10nF capacitive load, and can provide up to 0.5mA (typ) of output current.
The TLV3011 and TLV3012 are available in the tiny SOT23-6 package for space-conservative designs. It is also available in the SC70 package for even greater board area savings. Both versions are specified for the temperature range of 40°C to +125°C.
