TLV3404

Features: `Low Supply Current . . . 470 nA/Per Channel`Input Common-Mode Range Exceeds the Rails . . . 0.1 V to VCC + 5 V`Supply Voltage Range . . . 2.5 V to 16 V`Reverse Battery Protection Up to 18 V`Open Drain CMOS Output Stage`Specified Temperature Range 0°C to 70°C Commercial Grade 40°C to 12...

product image

TLV3404 Picture
See larger image
SeekIC No. : 004522475 Detail

TLV3404: Features: `Low Supply Current . . . 470 nA/Per Channel`Input Common-Mode Range Exceeds the Rails . . . 0.1 V to VCC + 5 V`Supply Voltage Range . . . 2.5 V to 16 V`Reverse Battery Protection Up to 18...

TLV3404 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TLV3404
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`Low Supply Current . . . 470 nA/Per Channel
`Input Common-Mode Range Exceeds the Rails . . . 0.1 V to VCC + 5 V
`Supply Voltage Range . . . 2.5 V to 16 V
`Reverse Battery Protection Up to 18 V
`Open Drain CMOS Output Stage
`Specified Temperature Range
0°C to 70°C Commercial Grade
40°C to 125°C Industrial Grade
`Ultrasmall Packaging
5-Pin SOT-23 (TLV3401)
8-Pin MSOP (TLV3402)
`Universal Op-Amp EVM (Reference SLOU060 for more information)


Pinout

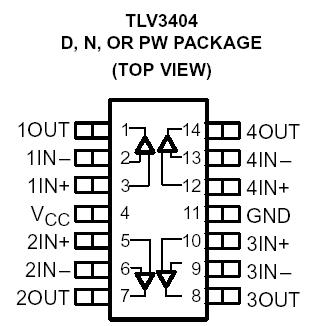

Connection Diagram


Specifications

Supply voltage, VCC (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 V
Differential input voltage, VID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .±20 V
Input voltage range, VI (see Notes 1 and 2) . . . . . . . . . . . . . .0 to VCC + 5 V
Input current range, II . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .±10 mA
Output current range, IO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .±10 mA
Continuous total power dissipation . . . . . . . . . .See Dissipation Rating Table
Operating free-air temperature range, TA: C suffix . . . . . . . . . 0°C to 70°C
Operating free-air temperature range, TA:I suffix . . . . . . .40°C to 125°C
Maximum junction temperature, TJ . . . . . . . . . . . . . . . . . . . . . . . . . . .150°C
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . 65°C to 150°C
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds . . . .260°C


Description

The TLV3404 is Texas Instruments' first family of nanopower comparators with only 470 nA per channel supply current, which make this device ideal for battery power and wireless handset applications.

The TLV3404 has a minimum operating supply voltage of 2.7 V over the extended industrial temperature range (TA = 40°C to 125°C), while having an input common-mode range of 0.1 to VCC + 5 V. The low supply current makes it an ideal choice for battery powered portable applications where quiescent current is the primary concern. Reverse battery protection guards the amplifier from an over-current condition due to improper battery installation. For harsh environments, the inputs of TLV3404 can be taken 5 V above the positive supply rail without damage to the device.

All members of TLV3404 are available in PDIP and SOIC with the singles in the small SOT-23 package, duals in the MSOP, and quads in the TSSOP package.
