TLV320DAC26

Features: *Low Power High Quality Audio DAC*Stereo Audio DAC Support Rates up to48 ksps*High Quality 97-dBA Stereo Audio Playback Performance*Low Power: 11-mW Stereo Audio Playback at 48 ksps*On-Chip 325-mW, 8-Speaker Driver*Stereo Headphone Amplifier With Capless Output Option*Integrated PLL for ...

product image

TLV320DAC26 Picture
See larger image
SeekIC No. : 004522471 Detail

TLV320DAC26: Features: *Low Power High Quality Audio DAC*Stereo Audio DAC Support Rates up to48 ksps*High Quality 97-dBA Stereo Audio Playback Performance*Low Power: 11-mW Stereo Audio Playback at 48 ksps*On-Chi...

TLV320DAC26 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TLV320DAC26
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

*Low Power High Quality Audio DAC
*Stereo Audio DAC Support Rates up to48 ksps
*High Quality 97-dBA Stereo Audio Playback Performance
*Low Power: 11-mW Stereo Audio Playback at 48 ksps
*On-Chip 325-mW, 8-Speaker Driver
*Stereo Headphone Amplifier With Capless Output Option
*Integrated PLL for Flexible Audio Clock Generation
*Programmable Digital Audio Bass/Treble/EQ/De-Emphasis
*Microphone and AUX Inputs Available for Analog Sidetone Mixing
*Microphone Bias and Pre−AmpSP Iand I2SSerial Interfaces
*Full Power-Down Control
*32-Pin 5*5 mm QFN Package






Application

*MP3 Players
*Digital Still Cameras
*Digital Video Camcorders

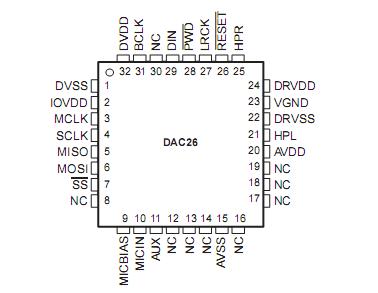

Pinout






Specifications

UNITS

AVDD to AVSS

−0.3 V to 3.9 V

DRVDD to DRVSS

−0.3 V to 3.9 V

IOVDD to DVSS

−0.3 V to 3.9 V

DVDD to DVSS

−0.3 V to 2.5 V

AVDD to DRVDD

−0.1 V to 0.1 V

AVSS to DRVSS to DVSS

−0.1 V to 0.1 V

Analog inputs to AVSS

−0.3 V to AVDD + 0.3 V

Digital input voltage to DVSS

−0.3 V to IOVDD + 0.3 V

Operating temperature range

−40°C to 85°C

Storage temperature range

−65°C to 105°C°

Junction temperature (TJMax)

105°C

QFN package

Power dissipation

(TJMax − TA)/JA

JA Thermal impedance

123°C/W

Lead temperature

Soldering vapor phase (60 sec)

215°C

Infrared (15 sec)

220°C






Description

The TLV320DAC26 is a high-performance audio DAC with 16/20/24/32-bit 97-dBA stereo playback.The audio output drivers on the 'DAC26 are highly flexible, having software-programmable low or high-power drive modes to optimize system power dissipation. The outputs of TLV320DAC26 can be configured to supply up to 330 mW into a bridge terminated8-Ω load, can support stereo 16-Ω headphone amplifiers in ac-coupled or capless output configurations, and can supply a stereo line-level output

A programmable digital audio of TLV320DAC26 effects processor enables bass, treble, midrange, or equalization playback processing. The digital audio data format is programmable to work with popular audio standard protocols (I2S, DSP,Left/Right Justified) in master or slave mode, and also includes an on-chip programmable PLL for flexible clock generation capability. Highly configurable
software power control of TLV320DAC26 is provided, enabling stereo audio playback at 48 ksps at 11 mW with a 3.3-V analog supply level.

The TLV320DAC26 is available in a 32 lead QFN.
