TLV320AIC26

Features:

* Low Power High Quality Audio Codec
* Stereo Audio DAC and Mono Audio ADC
   Support Rates up to 48 ksps
* High Quality 97-dBA Stereo Audio Playback
   Performance
* Low Power: 11-mW Stereo Audio Playback at
   48 ksps
* On-Chip 325-mW, 8-
Speaker Driver
* Stereo Headphone Amplifier With Capless
   Output Option
* Microphone Preamp and Hardware Automatic
   Gain Control
* Integrated PLL for Flexible Audio Clock
   Generation
* Programmable Digital Audio
   Bass/Treble/EQ/De-Emphasis
* Direct Battery Measurement Accepts up to
   6-V Input
* On-Chip Temperature Measurement
* SPI and I2S Serial Interface
* Full Power-Down Control
* 32-Pin 5
5 mm QFN Package


Application

* Cellular and Smart Phones
* MP3 Players
* Digital Still Cameras
* Digital Video Camcorders

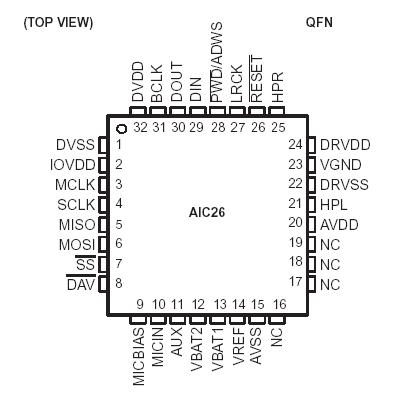

Pinout




Specifications

		UNITS
AVDD to AVSS		−0.3 V to 3.9 V
DRVDD to DRVSS		−0.3 V to 3.9 V
IOVDD to DVSS		−0.3 V to 3.9 V
DVDD to DVSS		−0.3 V to 2.5 V
AVDD to DRVDD		−0.1 V to 0.1 V
AVSS to DRVSS to DVSS		−0.1 V to 0.1 V
Analog inputs (except VBAT1 and VBAT2) to AVSS		−0.3 V to AVDD + 0.3 V
VBAT1 / VBAT2 to AVSS		−0.3 V to 6 V
Digital input voltage to DVSS		−0.3 V to IOVDD + 0.3 V
Operating temperature range		−40 to 85
Storage temperature range		−65 to 105
Junction temperature (TJ Max)		105
QFN package	Power dissipation	(TJ Max − TA)/JA
	JA Thermal impedance	123°C/W
Lead temperature	Soldering vapor phase (60 sec)	215
	Infrared (15 sec)	220

Description

   The TLV320AIC26 is a high-performance audio codec with 16/20/24/32-bit 97-dBA stereo playback, mono record functionality at up to 48 ksps. A microphone input includes built-in preamp and hardware automatic gain control, with single-ended or fully-differential input capability.
   The audio output drivers of TLV320AIC26 on the 'AIC26 are highly flexible, having software-programmable low or high-power drive modes to optimize system power dissipation. The outputs can be configured to supply up to 325 mW into a bridge terminated 8-Ω load, can support stereo 16-Ω headphone amplifiers in ac-coupled or capless output configurations, and can supply a stereo line-level output
    A programmable digital audio TLV320AIC26 effects processor enables bass, treble, midrange, or equalization playback processing. The digital audio data format is programmable to work with popular audio standard protocols (I2S, DSP, Left/Right Justified) in master or slave mode, and also includes an on-chip programmable PLL for flexible clock generation capability. Highly configurable software power control of TLV320AIC26 is provided, enabling stereo audio playback at 48 ksps at 11 mW with a 3.3-V analog supply level.
   The TLV320AIC26 offers a 12-bit measurement ADC and internal reference voltage, as well as two battery measurement inputs capable of reading battery voltages up to 6 V, while operating at an analog supply as low as 2.7 V. It includes an on-chip temperature sensor capable of reading 0.3°C resolution. The TLV320AIC26  is available in a 32 lead QFN.
