TLV320AIC22C

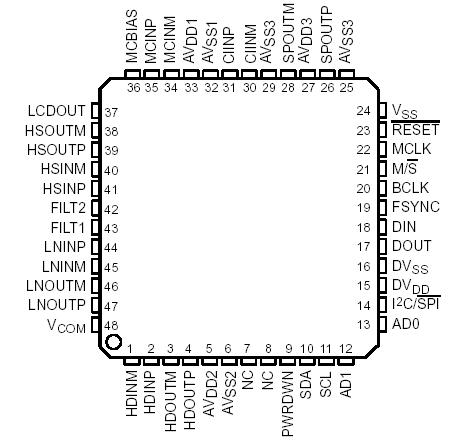

Pinout




Specifications

Supply voltage, AVDD1, AVDD2, AVDD3 to AVSS1, AVSS2, AVSS3, DVDD to DVSS  . . . . . . . . .0.3 V to 4.5 V
Analog input voltage range to AVSS1, AVSS2, and AVSS3  . . . . . . . . . . . . . . . . . . .. .0.3 V to AVDD + 0.3 V
Digital input voltage range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . .0.3 V to DVDD + 0.3 V
Operating virtual junction temperature range, TJ  . . . . . . . . . . . . . . . . . . . . .. . . . . ...... . .40°C to 150°C
Operating free-air temperature range, TA  . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . . . .40°C to 85°C
Storage temperature range, Tstg  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65°C to 150°C
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds . . . . . . . . . . . . . . . .  . . . . . . . . . . . .260°C


Description

   The TLV320AIC22C contains two coders/decoders (codecs) for voice applications, including voice over internet protocol (VoIP). It features two analog-to-digital converter (ADC) channels and two digital-to-analog converter (DAC) channels that can be connected to a handset, headset, speaker, microphone, or a subscriber line via an analog crosspoint.
   The TLV320AIC22C has a flexible serial interface that allows the two channels of the TLV320AIC22C to be interfaced to a single multichannel buffered serial port (McBSP) of the external digital signal processor (DSP). The two channels share the digital interface at different time slots. Up to four TLV320AIC22C units can be cascaded together to obtain eight channels. For control purposes, either the serial interface or the inter-integrated circuit (I2C) interface can be used. Programmable-gain amplifiers (PGAs), preamp gain, microphone bias voltages, and analog crosspoint are programmed through the serial interface or the I2C interface. The TLV320AIC22C can be powered down, via a dedicated terminal or by using software control, to reduce power dissipation.
   The TLV320AIC22C is available in a 48-terminal LQFP package and is characterized for operation from 40°C to 85°C.
