TLV320AIC11

Features: • 16-bit oversampling sigma-delta A/D converter• 16-bit oversampling sigma-delta D/A converter• Maximum output conversion rate: 22 ksps with on-chip FIR filter 88 ksps with FIR bypassed• Voiceband bandwidth in FIR-bypassed mode and final sampling rate at 8 ksps ...

product image

TLV320AIC11 Picture
See larger image
SeekIC No. : 004522436 Detail

TLV320AIC11: Features: • 16-bit oversampling sigma-delta A/D converter• 16-bit oversampling sigma-delta D/A converter• Maximum output conversion rate: 22 ksps with on-chip FIR filter 88 ksps ...

TLV320AIC11 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TLV320AIC11
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 16-bit oversampling sigma-delta A/D converter
• 16-bit oversampling sigma-delta D/A converter
• Maximum output conversion rate:
  22 ksps with on-chip FIR filter
  88 ksps with FIR bypassed
• Voiceband bandwidth in FIR-bypassed mode and final sampling rate at 8 ksps
  90-dB SNR/ADC and 87-dB SNR/DAC with DSP's FIR (FIR bypassed @ 88 ksps/5 V)
  87-dB SNR/ADC and 85-dB SNR/DAC with DSP's FIR (FIR bypassed @88 ksps/3.3 V)
• On-chip FIR produced 84-dB SNR for ADC and 85-dB SNR for DAC over 11-kHz BW
• Built-in functions including PGA, antialiasing analog filter, and op-amps for general-purpose interface (such
  as MIC interface and hybrid interface)
• Glueless serial port interface to DSPs (TI TMS320UC54x or standard DSPs)
• Automatic cascading detection (ACD) makes cascade programming simple and allows up to 8 devices to
  be connected in cascade.
• On-fly reconfiguration modes include secondary-communication mode and direct-configuration mode (host
   interface).
• Continuous data-transfer mode for use with autobuffering (ABU) to reduce DSP interrupt service overhead
• Event-monitor mode provides external-event control, such as RING/OFF-HOOK detection
• Programmable ADC and DAC conversion rate
• Programmable input and output gain control
• Separate software control for ADC and DAC power-down
• Low-voltage (DVDD1) 1.1-V to 3.6-V digital I/O
• Analog (AVDD1 and AVDD2) 3 V to 5.5 V core power supply
• Digital (DVDD2) 3 V to 5.5 V core power supply
• Power dissipation (PD) of 39 mW typical for 8-ksps at 3.3 V
• Hardware power-down mode to 0.2 mW
• Internal and external reference voltage (Vref)
• Differential and single-ended analog input/output
• 2s-complement data format
• Test mode, which includes digital loopback and analog loopback
• 600-ohm output driver
• VHDL code for serial interface available


Pinout

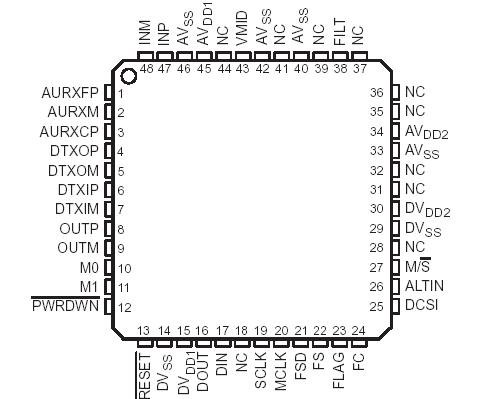

Connection Diagram


Specifications

Supply voltage I/O range, DVDD1  . . . . . . . . . . . . . .. . . . . . . . . . . . . . . .0.3 V to 4.0 V
Supply voltage core range, DVDD2, AVDD (see Note 1)  . . . . . .  . . . . . . . .0.3 V to 7 V
Output voltage range, all digital output signals . . . . . . . . . . . . . . . . . . . .0.3V to 4.5 V
Input voltage range, all digital input signals . . . . . . . .. . . . . . . . . . . . . . .0.3V to 4.5 V
Case temperature for 10 seconds: package  . . . . . . . . . . . . . . . . . . . . . . . . . . . .260°C
Operating free-air temperature range, TA  . . . . . . . . . . . . . . . . . . . . . .40°C to 85°C
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . .65°C to 150°C
