TLV320AIC10

Features: • C54xx software driver available• 16-bit oversampling sigma-delta A/D converter• 16-bit oversampling sigma-delta D/A converter• Maximum output conversion rate: 22 ksps with on-chip FIR filter 88 ksps with FIR bypassed• Voiceband bandwidth in FIR-bypassed ...

product image

TLV320AIC10 Picture
See larger image
SeekIC No. : 004522435 Detail

TLV320AIC10: Features: • C54xx software driver available• 16-bit oversampling sigma-delta A/D converter• 16-bit oversampling sigma-delta D/A converter• Maximum output conversion rate: 22...

TLV320AIC10 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TLV320AIC10
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• C54xx software driver available
• 16-bit oversampling sigma-delta A/D converter
• 16-bit oversampling sigma-delta D/A converter
• Maximum output conversion rate:
   22 ksps with on-chip FIR filter
   88 ksps with FIR bypassed
• Voiceband bandwidth in FIR-bypassed mode and final sampling rate at 8 ksps
   90-dB SNR/ADC and 87-dB SNR/DAC with DSP's FIR (FIR bypassed at 88 ksps/5 V)
   87-dB SNR/ADC and 85-dB SNR/DAC with DSP's FIR (FIR bypassed at 88 ksps/3.3 V)
• On-chip FIR produced 84-dB SNR for ADC and 85-dB SNR for DAC over 11-kHz BW
• Built-in functions including PGA, antialiasing analog filter, and operational amplifiers for general-purpose
   interface (such as MIC interface and hybrid interface)
• Glueless serial port interface to DSPs (TI TMS320Cxx, SPI, or standard DSPs)
• Automatic cascading detection (ACD) makes cascade programming simple and allows up to 8 devices to
   be connected in cascade.
• On-fly reconfiguration modes include secondary-communication mode and direct-configuration mode (host
   interface).
• Continuous data-transfer mode for use with autobuffering (ABU) to reduce DSP interrupt service overhead
• Event-monitor mode provides external-event control, such as RING/OFF-HOOK detection
• Programmable ADC and DAC conversion rate
• Programmable input and output gain control
• Separate software control for ADC and DAC power-down
• Analog (3 V to 5.5 V) supply operation
• Digital (3 V to 5.5 V) supply operation
• Power dissipation (PD) of 39 mWrms typical for 8-ksps at 3.3 V
• Hardware power-down mode to 0.5 mW
• Internal and external reference voltage (Vref)
• Differential and single-ended analog input/output
• 2s-complement data format
• Test mode, which includes digital loopback and analog loopback
• 600-ohm output driver
• VHDL code for serial interface available


Pinout

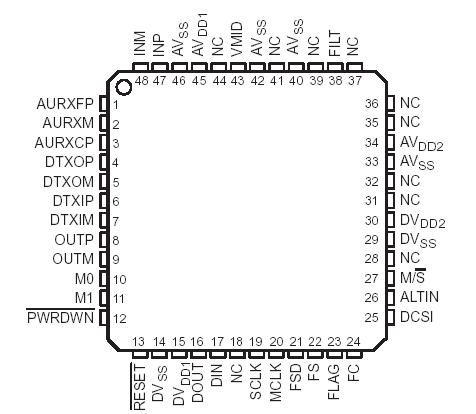

Connection Diagram


Specifications

Supply voltage range, DVDD, AVDD (see Note 1)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to 7 V
Output voltage range, all digital output signals  . . . . . . . . . . . . . . .  . . . . . . . . . . . . 0.3V to DVDD+0.3 V
Input voltage range, all digital input signals  . . . . . . . . . . . . . . . . . .  . . . . . . . . . . . 0.3V to DVDD +0.3 V
Case temperature for 10 seconds: package  . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . . . . . . . . . . 260°C
Operating free-air temperature range, TA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40°C to 85°C
Storage temperature range, Tstg  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65°C to 150°C
