Product Details

Description



Features:

Complete Discrete Multitone (DMT)-Based Asymmetric Digital Subscriber Line (ADSL) Coder/Decoder (Codec) Solution
Complies With ANSI Std T1.413, Issue 2 and ITU Std G.992.1
Supports up to 8-Mbit/s Downstream and 800-kbit/s Upstream Duplex
Integrated 14-Bit Converters for Transmitter/Echo-Canceller/Receiver (TX/EC/RX)
Integrated 12-Bit Digital-to-Analog Converter (DAC) for Voltage-Controlled Oscillator (VCXO) Control
Integrated TX/EC/RX Channel Filters
Integrated TX/EC/RX Attenuation/Gain
Integrated Voltage Reference
Selectable 2.2-Mega Samples Per Second (MSPS) or 4.4-MSPS Parallel Data Transfer Rate
Serial-Configuration Port
Eight General-Purpose (GP) Output Terminals
Single 3.3-V ±10% Supply Operation
Hardware/Software Power Down
40°C to 85°C Operation
Packaged in 100-Pin Plastic Quad Flatpack

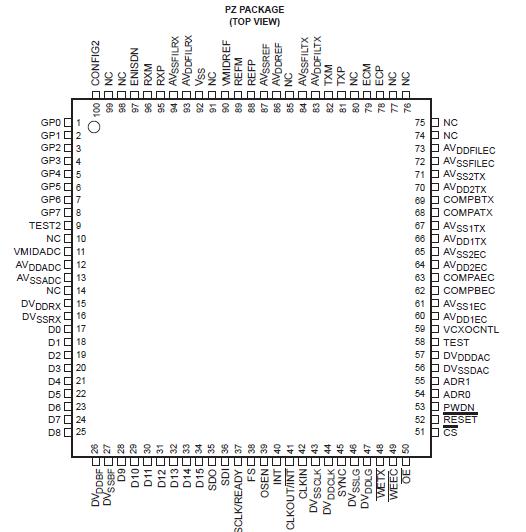

Pinout

Connection Diagram


Specifications

Supply voltage, AVDD to AVSS, DVDD to DVSS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to 4.5 V
Analog input voltage range to AVSS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to AVDD + 0.3 V
Digital input voltage range to DVSS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . 0.3 V to DVDD + 0.3 V
Operating virtual junction temperature range, TJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40°C to 150°C
Operating free-air temperature range, TA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . 40°C to 85°C
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65°C to 150°C
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 260°C
† Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.


Description

The TLV320AD13A is a high-speed coder/decoder (codec) for remote terminal (RT)-side modems that supports ADSL over integrated services digital network (ISDN) solution. The TLV320AD13A is a low-power device composed of five major functional groups for transmit (TX), receive (RX), clock, reference, and host interface. It is designed to work with the Texas Instruments (TI™) TNETD2022D central office (CO)-side codec for ISDN.

The TX channel consists of a 138-kHz to 276-kHz digital bandpass filter, a 14-bit high-speed digital-to-analog converter (DAC), a 276-kHz analog low-pass filter (LPF), a TX attenuator, and an echo-cancellation (EC) channel. The RX channel of TLV320AD13A consists of a 1.104-MHz digital LPF, a 1.104-MHz analog LPF, a frequency equalizer, and a programmable-gain amplifier (PGA). The clock circuit divides a 35.328-MHz frequency from an external voltage controlled oscillator (VCXO) down to the necessary frequencies used throughout the device. The frequency of the external VCXO of TLV320AD13A is controlled by a 12-bit onboard voltage-output DAC. An onboard reference circuit generates a 1.5-V reference for the converters.

The TLV320AD13A has a parallel port for data transfer and a serial port for control. The parallel port is 16 bits wide and is reserved for moving data between the codec and a host transceiver such as the TI C6x DSP. Configuration is done via a serial port. The TLV320AD13A can be powered down via a dedicated pin, or through software control, to reduce heat dissipation. Additionally, there is a general-purpose (GP) port consisting of eight output terminals for control of external circuitry.

The TLV320AD13A codec is characterized for operation in the temperature range of 40°C to 85°C and is available in a 100-pin PQFP (PZ) package.
