Features:

•6 pin DIP (DIP6)
•1-Form-A
•Peak Off-State Voltage : 600 V (MIN.)
•Trigger LED Current : 5mA (MAX.)
•On-State Current : 100 mA (MAX.)
•On-State Resistance : 35 Ω (MAX.)
•Isolation Voltage : 5000 V_rms (MIN.)

Pinout

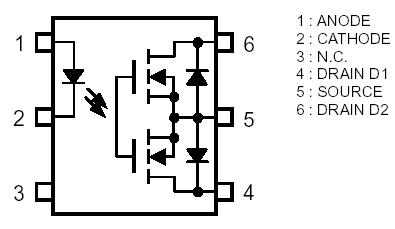

Connection Diagram

Specifications

CHARACTERISTIC			SYMBOL	RATING	UNIT
D E L	Forward Current		I_F	50	mA
	Forward Current Derating (T_a 25°C)		I_F/°C	-0.5	mA/°C
	Peak Forward Current (100 s pulse, 100 pps)		I_FP	1	A
	Reverse Voltage		V_R	5	V
	Junction Temperature		T_j	125
R O T C E T E D	Off-State Output Terminal Voltage		V_OFF	600	V
	On-State Current	A Connection	I_ON	100	mA
		B Connection		100
		C Connection		200
	On-State Current Derating (T_a 25°C)	A Connection	I_ON/°C	-1.0	mA/°C
		B Connection		-1.0
		C Connection		-2.0
	Junction Temperature		T_j	125	°C
Storage Temperature Range			T_stg	-55~125	°C
Operating Temperature Range			T_opr	-40~85	°C
Lead Soldering Temperature (10 s)			T_sol	260	°C
Isolation Voltage (AC, 1 minute, R.H. 60%) (NOTE1)			BV_S	5000	Vrms
