TLP719

PinoutSpecifications Characteristic Symbol Rating Unit LED Forward current (Note 1) IF 25 mA Pulse forward current(Note 2) IFP 50 mA Peak transient forwardcurrent (Note 3) IFPT 1 A Reverse voltage VR 5 V Diode power dissipation (Note 4) PD 45 mW Junction T...

product image

TLP719 Picture
See larger image
SeekIC No. : 004521864 Detail

TLP719: PinoutSpecifications Characteristic Symbol Rating Unit LED Forward current (Note 1) IF 25 mA Pulse forward current(Note 2) IFP 50 mA Peak transient forwardcurrent (Note 3) I...

TLP719 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TLP719
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Pinout

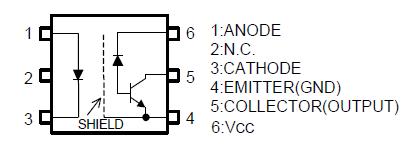

Connection Diagram


Specifications

Characteristic Symbol Rating Unit
LED Forward current                                       (Note 1) IF 25 mA
Pulse forward current                              (Note 2) IFP 50 mA
Peak transient forward
current                                                     (Note 3)		 IFPT 1 A
Reverse voltage VR 5 V
Diode power dissipation
                                                                (Note 4)		 PD 45 mW
Junction Temperature Tj 125
Detector Output current IO 8 mA
Peak output current IOP 16 mA
Output voltage VO -0.5~20 V
Supply voltage VCC -0.5~30 V
Output power dissipation                         (Note 5) PO 100 mW
Junction Temperature Tj 125
Operating temperature range Topr -55~100
Storage temperature range Topr -55~125
Lead solder temperature (10s) Tsol 260
Isolation voltage
(AC, 1min., R.H.= 60%)                                           (Note 6)		 BVS 5000 Vrms



Description

The TOSHIBA TLP719 consists of a GaAlAs high-output light emitting diode and a high speed detector.

This unit is 6-lead SDIP. TLP719 is 50% smaller than 8PIN DIP and has suited the safety standard reinforced insulation class.

So mounting area in safety standard required equipment can be reduced.

TLP719 has a Faraday shield integrated on the photodetector chip provides an effective common mode noise transient immunity.

So this is suitable for application in noisy environmental condition.
