TLP172G

Circuit: SPST-NO (1 Form A)
Output Type: AC, DC
Mounting Type: Surface Mount
Termination Style: Gull Wing
Relay Type: Relay
Packaging: Tube
Supplier Device Package: 4-SOP (2.54mm)
On-State Resistance: 35 Ohm
Package / Case: 4-SOP (0.228", 5.80mm)
Voltage - Load: 0 ~ 350 V
Voltage - Input: 1.15VDC
Load Current: 110mA
Manufacturer: Toshiba
Series: TLP172G


Features:

 4-pin SOP (2.54SOP4): Height = 2.1 mm, Pitch = 2.54 mm
1-Form-A
Peak Off-state voltage: 350 V (min)
Trigger LED current: 3 mA (max)
On-state current: 110 mA (max)
On-state resistance: 35 (max t < 1 s)
On-state resistance: 50 (max continuous)
Isolation voltage: 1500 Vrms (min)

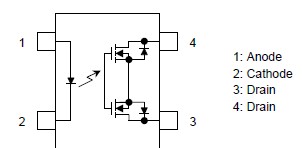

Pinout




Specifications

Characteristic		Symbol	Rating	Unit
LED	Forward current	IF	50	mA
	Forward current derating (Ta 25°C)	IF/°C	-0.5	mA/°C
	Reverse voltage	VR	5	V
	Junction temperature	Tj	125	mW
Detector	Off-state output terminal voltage	VOFF	350	V
	On-state current	ION	110	mA
	On-state current derating (Ta 25°C)	ION/°C	-1.1	mA/°C
	Junction temperature	Tj	125	°C
Storage temperature range		Tstg	-55~125	°C
Operating temperature		Topr	-40~85	°C
Lead solder temperature (10s)		Tsol	260	°C
Isolation voltage(AC, 1 min, R.H. 60%) (Note 1)		BVS	1500	Vrms

Note 1: Device considered a two-terminal device: LED side pins shorted together, and detector side pins shorted together.

Description

The Toshiba TLP172G consists of an aluminum gallium arsenide infrared emitting diode optically coupled to a photo-MOSFET in a SOP,which is suitable for surface mount assembly.

The TLP172G is suitable for the modem applications which require space savings.

Parameters:

Technical/Catalog Information	TLP172G
Vendor	Toshiba
Category	Relays
Mounting Type	Surface Mount
Termination Style	Gull Wing
Package / Case	4-SOP
Circuit	SPST-NO (1 Form A)
Load Current	110mA
Voltage - Input	1.15VDC
Voltage - Load	0 ~ 350 V
Output Type	AC, DC
On-State Resistance	35 Ohm
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	TLP172G TLP172G
