Product Details

Quick Details

Series: - Manufacturer: Toshiba
Number of Channels: 1 Input Type: DC
Voltage - Isolation: 2500Vrms Current Transfer Ratio (Min): 10% @ 16mA
Current Transfer Ratio (Max): - Voltage - Output: 15V
Package / Case : LLP-40 Current - Output / Channel: 8mA
Current - DC Forward (If): 25mA Vce Saturation (Max): -
Output Type: Transistor with Vcc Mounting Type: Surface Mount
Package / Case: 6-SOIC (0.173", 4.40mm Width) 5 Leads

Description

Series: -
Number of Channels: 1
Input Type: DC
Mounting Type: Surface Mount
Current Transfer Ratio (Max): -
Packaging: Tube
Current - Output / Channel: 8mA
Current - DC Forward (If): 25mA
Vce Saturation (Max): -
Output Type: Transistor with Vcc
Voltage - Isolation: 2500Vrms
Package / Case: 6-SOIC (0.173", 4.40mm Width) 5 Leads
Manufacturer: Toshiba
Voltage - Output: 15V
Current Transfer Ratio (Min): 10% @ 16mA


Pinout

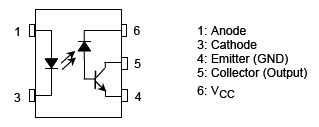

  Connection Diagram




Specifications

Characteristic Symbol Test Condition Min. Typ. Max. Unit
LED Forward voltage VF IF=16mA 1.22 1.42 1.72 V
Forward voltage
temperature coefficient
VF / Ta IF=16mA -2 mV / °C
Reverse current IR VR=3V 10 A
Capacitance between
terminals
CT VF=0, f=1MHz 30 pF
Detector High level outputcurrent IOH(1) IF=0mA, VCC=VO=5.5V 3 500 nA
IOH(2) IF=0mA, VCC=VO=15V 5 A
IOH IF=0mA, VCC=VO=15V
Ta=70°C
50
High level supply
current
ICCH IF=0mA, VCC=15V 0.01 1 A
Coupled Current transfer ratio IO / IF IF=16mA, VCC=4.5V
VO=0.4V
20 %
Low level output
voltage
VOL IF=16mA, VCC=4.5V
IO=2.4mA
0.4 V
Isolation resistance RS R.H. 60%
VS=500V DC (Note 5)
5*1010 1014
Stray capacitance
between input to output
CS VS=0, f=1MHz (Note 5) 0.8 pF





Description

The TLP112A is designed as a small outline coupler, suitable for surface mount assembly. It consists of a high output power GaAs light emitting diode, optically coupled to a high speed detector of one chip photodiode transistor.

TLP112A has four features. (2) Its isolation voltage is 2500Vrms (min). (2) Its switching speed is tpHL=0.8s, tpLH=0.8s(max) (RL=1.9k). (3) It would be TTL compatible. (4) UL recognized: UL1577, file no. E67349. That are all the main features.

Some absolute maximum ratings of TLP112A have been concluded into several points as follow. (1) For the LED its forward current would be 20mA. (2) Its pulse-forward current is 40mA. (3) Its peak transient forward current is 1A. (4) Its reverse voltage is 5V. (5) For the detector its output current is 8mA. (6) Its peak output current is 16mA. (7) Its supply voltage is from -0.5V to 15V. (8) Its output voltage is from -0.5V to 15V. (9) output power dissipation is 100mW. (10) Its operating temperature range is from -55°C to 100°C. (11) Its storage temperature range is from -55°C to 125°C. (12) Its lead soldering temperature (10s) is 260°C. (13) Its isolation voltage (AC, 1min, RH<=60%) is 2500Vrms.

Also some electrical characteristics about TLP112A. (1) For the LED its forward voltage is min 1.22V and typ 1.42V and max 1.72V. (2) Its forward voltage temperature coefficient is typ -2mV/°C. (3) Its reverse current is max 10uA. (4) Its capacitance between terminals is typ 30pF. (5) For the detector its high level output current is typ 3nA and max 500nA with Vcc=5.5V and it would be max 5uA for Vcc=15V and it would be max 50uA at Vcc=15V and 70°C. (6) Its high level supply current is typ 0.01uA and max 1uA. (7) For coupled its current transfer ratio is min 20%. (8) Its low level output voltage is max 0.4V. (9) Its isolation resistance is min 5x10^10 and typ 10^14 . (10) Its stray capacitance between input to output is typ 0.8pF. And so on. If you have any question or suggestion or want to know more information about TLP112A please contact us for details. Thank you!
