TLE 6365

Features: 1.1FeaturesStep down converterSupply Over- and Under-Voltage-LockoutLow Output voltage toleranceOutput Overvoltage Lockout Output Under-Voltage-Reset with delayOvertemperature ShutdownWide Ambient operation range -40°C to 125°CWide Supply voltage operation rangecVery low current consumpt...

product image

TLE 6365 Picture
See larger image
SeekIC No. : 004520831 Detail

TLE 6365: Features: 1.1FeaturesStep down converterSupply Over- and Under-Voltage-LockoutLow Output voltage toleranceOutput Overvoltage Lockout Output Under-Voltage-Reset with delayOvertemperature ShutdownWide...

TLE 6365 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TLE 6365
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

1.1Features
Step down converter
Supply Over- and Under-Voltage-Lockout
Low Output voltage tolerance
Output Overvoltage Lockout
Output Under-Voltage-Reset with delay
Overtemperature Shutdown
Wide Ambient operation range -40°C to 125°C
Wide Supply voltage operation rangec
Very low current consumption
Very small P-DSO-8 SMD package

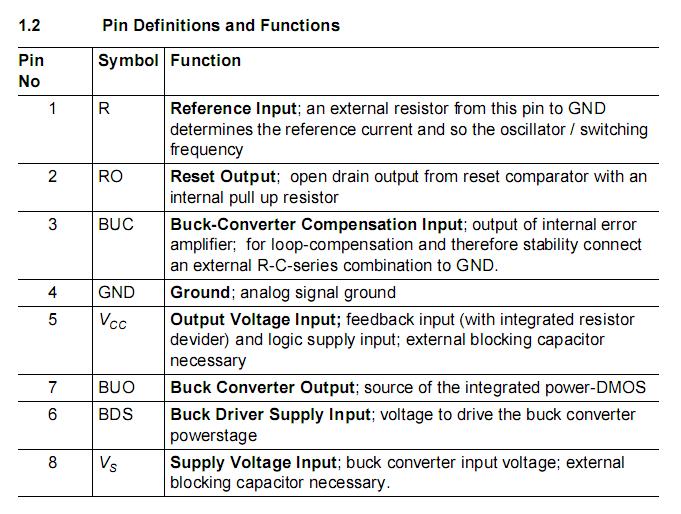

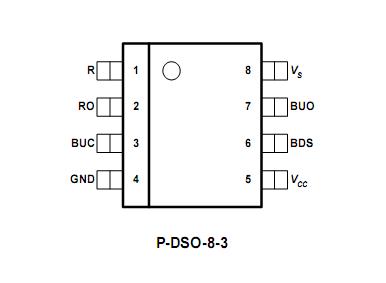

Pinout

Connection Diagram



Connection Diagram




Specifications

Parameter Symbol Limit Values Unit Remarks
min. max.
Voltages
Supply voltage VS -0.3 46 V
Buck output voltage VBUO
 -1 46 V
Buck driver supply voltage VBDS -0.3 55 v
Logic supply voltage VCC
 -0.3 6.8 V
Reset output voltage

 VRO -0.3 6.8 v
Current reference voltage VR -0.3 6.8 v
all pins to GND VHBM -2 2 kv
Junction temperature Tj -40 150 °C -
Storage temperature Tstg -50 150 °C -



Description

   The  TLE 6365 G is a power supply circuit especially designed for automotiveapplications. The device is based on Infineon!s power technology S  which allows bipolar and CMOS control circuitry to be integrated with DMOS power devices on the same monolithic circuitry.  The TLE 6365 G contains a buck converter and a power on reset feature to start up the system. The very small P-DSO-8-3 SMD package meets the application requierements. It delivers a precise 5V fully short circuit protected output voltage.  Furthermore, the build-in features like under- and overvoltage lockout for supply- and output-voltage and the overtemperature shutdown feature increase the reliability of the
TLE 6365 G supply system.
