TLE 4202 B

Features: • Drives motors up to 2 A• Integrated free-wheeling diodes 2.5 A• Short-circuit proof to ground• Overtemperature protection• Low saturation voltages through bootstrap• Wide temperature range• Suitable for applications in automotive engineeringPin...

product image

TLE 4202 B Picture
See larger image
SeekIC No. : 004520772 Detail

TLE 4202 B: Features: • Drives motors up to 2 A• Integrated free-wheeling diodes 2.5 A• Short-circuit proof to ground• Overtemperature protection• Low saturation voltages through b...

TLE 4202 B Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TLE 4202 B
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Drives motors up to 2 A
• Integrated free-wheeling diodes 2.5 A
• Short-circuit proof to ground
• Overtemperature protection
• Low saturation voltages through bootstrap
• Wide temperature range
• Suitable for applications in automotive engineering


Pinout

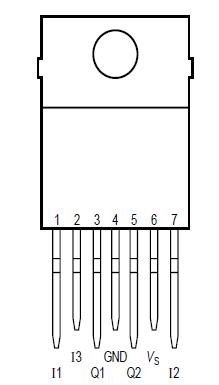

Connection Diagram


Specifications

Parameter
Symbol
Limit Values
Unit
min.
max.
Supply voltage
VS
40
V
Output current of
sink transistors
TC  85 °C
IQ
2.5
A
Output current of
source transistors
internally limited
IQ

Diode peak currents
to + VS
IF +
2.5
A
to ground
IF
2.5
A
Voltage at
pins I1, I2, I3
V1, 2,7
0.3
VS
V
Voltage at
pins Q1, Q2 1)
V3, 5
V
Junction temperature
T j
150
°C
Storage temperature
Tstg
55
125
°C
Supply voltage
VS
3.5
17
V
Case temperature during operation
RL 6 , VS = 7 . 16 V
TC
40
°C
RL 9 , VS = 16 V
TC
130
°C
Voltage amplification
(at negative feedback with
external connection)
VV
30
dB
Thermal resistance system - case
RthSC
4
K/W
1) The output voltages are kept within a permissible range by free-wheel diodes
Outputs Q1 and Q2 short-circuit proof to ground
RL: Resistance between output 1 and output 2


Description

The two power comparators can switch magnets, motors or other loads either by being separated from each other or by being combined to a full-bridge circuit. The TLE 4202 B is designed for application in motor vehicles. It can be applied at package temperatures between 40 °C and 130 °C.

The TLE 4202 B contains two amplifiers featuring a typical open-loop voltage gain of 80 dB at 500 Hz.

The input stages are PNP differential amplifiers thus resulting in a common-mode input voltage range from 0 V to approx. the value of VS and in a maximum input differential voltage of VS. To obtain low saturation voltages at the sink circuit, the drive circuit of the sink transistor is connected to the supply voltage. An SOA protective circuit protects the TLE 4202 B against ground short-circuits. At chip temperatures above approx. 160 °C the source transistors are turned off.
