Product Details

Description



Features:

Single-wire transceiver, suitable for LIN protocol
Transmission rate up to 20 kBaud
Compatible to LIN specification 1.2
Compatible to ISO 9141 functions
Very low current consumption in sleep mode
Control output for voltage regulator
Bus short to GND protection
Short circuit proof to ground and battery
Overtemperature protection

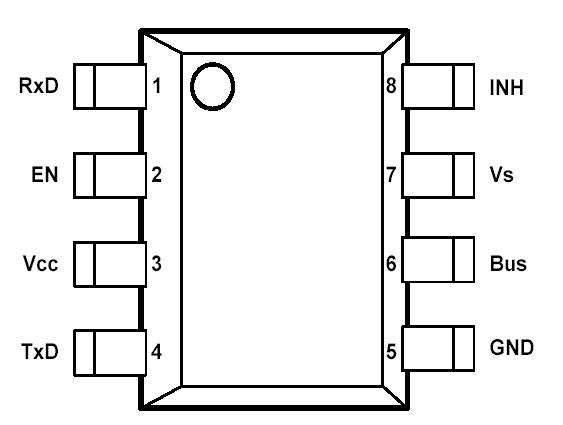

Pinout

Connection Diagram


Specifications

Parameter Symbol Limit Values Unit Remarks
min. max.
Voltages
Supply voltage VCC -0.3 6 V
Battery supply voltage VS -0.3 40 V
Bus input voltage Vbus -20 32 V
Bus input voltage Vbus -20 40 V t < 1s
Logic voltages at
EN, TxD, RxD		 VI -0.3 VCC +
0.3		 V 0 V < VCC < 5.5 V
Input voltages at INH VINH -0.3 VS +
0.3		 V
Output current at INH IINH   20 mA
Electrostatic discharge
voltage at Vs, Bus		 VESD -4 4 kV human body model
(100 pF via 1.5 k)
Electrostatic discharge
voltage		 VESD -2 2 kV human body model
(100 pF via 1.5 k)
Temperatures
Junction temperature Tj 40 7150 C



Description

The TLE 6259-2 is a monolithic integrated circuit in a P-DSO-8-3 package. It works as an interface between the protocol controller and the physical bus. The TLE 6259-2 is especially suitable to drive the bus line in LIN systems in automotive and industrial applications. Further it can be used in standard ISO9141 systems. The TLE6259-2 has a BUS short to GND feature implemented, to avoid a battery decharge.

In order to reduce the current consumption, the TLE 6259-2 offers a sleep operation mode. In this mode a voltage regulator can be controlled to minimize the current consumption of the whole application. A wake-up caused by a message on the bus, enables the voltage regulator and sets the RxD output LOW until the device is switched to normal operation mode.

The IC is based on the Smart Power Technology SPT® which allows bipolar and CMOS control circuitry in accordance with DMOS power devices existing on the same monolithic circuit.

The TLE 6259-2 is designed to withstand the severe conditions of automotive applications.
