TLE 6240 GP

Features: • Short Circuit Protection• Overtemperature Protection• Overvoltage Protection• 16 bit Serial Data Input and Diagnostic Output (2 bit/chan. acc. SPI Protocol)• Direct Parallel Control of Eight channels for PWM Applications• Parallel Inputs High or Low ...

product image

TLE 6240 GP Picture
See larger image
SeekIC No. : 004520828 Detail

TLE 6240 GP: Features: • Short Circuit Protection• Overtemperature Protection• Overvoltage Protection• 16 bit Serial Data Input and Diagnostic Output (2 bit/chan. acc. SPI Protocol)•...

TLE 6240 GP Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TLE 6240 GP
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Short Circuit Protection
• Overtemperature Protection
• Overvoltage Protection
• 16 bit Serial Data Input and Diagnostic Output (2 bit/chan. acc. SPI Protocol)
• Direct Parallel Control of Eight channels for PWM Applications
• Parallel Inputs High or Low Active Programmable
• General Fault Flag
• Low Quiescent Current
• Compatible with 3V Microcontrollers
• Electostatic discharge (ESD) Protection


Application

• C Compatible Power Switch for 12 V and 24 V Applications
• Switch for Automotive and Industrial System
• Solenoids, Relays and Resistive Loads
• Robotic Controls


Pinout

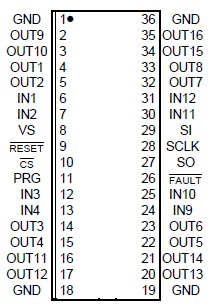

Connection Diagram


Specifications

Parameter
Symbol
Values
Unit
Supply Voltage
VS
-0.3 ... +7
V
Continuous Drain Source Voltage (OUT1...OUT16)
VDS
45
V
Input Voltage, All Inputs and Data Lines
VIN
-0.3 ... +7
V
Load Dump Protection VLoad Dump = UP+US; UP=13.5 V
RI1)=2 ; td=400ms; IN = low or high
Channel 1-8 with Automotive Relay RL = 65
Channel 9-16 with Automotive Injector Valve RL = 14
RI=2 ; td=400ms; IN = low or high
Channel 1-8 with Load RL = 24
Channel 9-16 with Load RL = 6.8
VLoad Dump
2)
90
65
65
50
V
Output Current per Channel (see el. characteristics)
ID(lim)
ID(lim) min
A
Output Current per Channel @ TA = 25°C
(All 16 Channels ON; Mounted on PCB ) 3)
ID1-8
ID9-16
0.3
0.5
A
Output Current
(Max. total current of all channels on; Heat Sink required)
IDmax
14
A
Single Pulse Inductive Energy (internal clamping)
TJ = 25°C, ID1-8 = 0.5 A, ID9-16 = 1 A
EAS
50
mJ
Power Dissipation (DC, mounted on PCB) @ TA = 25°C
Ptot
3.3
W
Electrostatic Discharge Voltage (Human Body Model)
according to MIL STD 883D, method 3015.7 and EOS/ESD
assn. standard S5.1 - 1993
VESD
2000
V
DIN Humidity Category, DIN 40 040
E
IEC Climatic Category, DIN IEC 68-1
40/150/56
Thermal Resistance
junction - case (die soldered on heat slug)
junction - ambient @ min. footprint
junction - ambient @ 6 cm2 cooling area with heat pipes
RthJC
RthJA
1.5
50
38
K/W

1) RI=internal resistance of the load dump test pulse generator LD200
2) VLoadDump is setup without DUT connected to the generator per ISO 7637-1 and DIN 40 839.
3) Output current rating so long as maximum junction temperature is not exceeded. At TA = 125 °C the output current has to be calculated using RthJA according mounting conditions.




Description

16-fold Low-Side Switch (8 x 1.3 , 4 x 0.4 , 4 x 0.35 ) in Smart Power Technology (SPT) with a Serial Peripheral Interface (SPI) and 16 open drain DMOS output stages. The TLE 6240 GP is protected by embedded protection functions and designed for automotive and industrial applications. The output stages are controlled via SPI Interface. Additionally 8 channels can be controlled direct in parallel for PWM applications. Therefore the TLE 6240 GP is particularly suitable for engine management and powertrain systems, safety and body applications.
