TLE 5250

Features: • Single phase driver for stepper motor 2.5 A• Low ON-resistance (typical 0.3 W)• Wide supply range 6 V to 45 V• Wide current range 10 mA to 3 A• Fast nominal/actual comparator for micro stepper mode• Wide temperature range• Short circuit protect...

product image

TLE 5250 Picture
SeekIC No. : 004520825 Detail

TLE 5250: Features: • Single phase driver for stepper motor 2.5 A• Low ON-resistance (typical 0.3 W)• Wide supply range 6 V to 45 V• Wide current range 10 mA to 3 A• Fast nominal...

floor Price/Ceiling Price

Part Number:
TLE 5250
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Single phase driver for stepper motor 2.5 A
• Low ON-resistance (typical 0.3 W)
• Wide supply range 6 V to 45 V
• Wide current range 10 mA to 3 A
• Fast nominal/actual comparator for micro stepper mode
• Wide temperature range
• Short circuit protection
• Under voltage shutdown
• Overtemperature shutdown
• Serial diagnostic interface
• Fast freewheeling diodes
• TTL-compatible inputs



Pinout

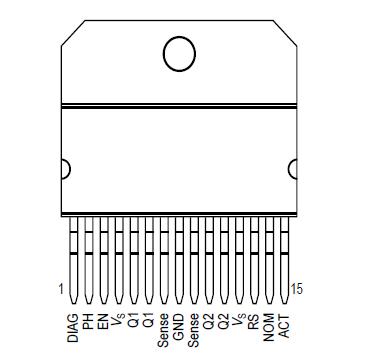

  Connection Diagram


Specifications

Parameter
Symbol
Limit Values
Unit
min.
max.
Supply voltage VS 0.3 45 V
Supply current IS 0 3 A
Peak currents on outputs IQ 3 3 A
Diode to + VS IFH   3 A
Diode to sense IFL   3 A
Output current on
actual-current pin
IAct   3 A
Voltage on actual-current pin VAct 0.3 5 V
Ground current, pin 6 IGND   3 A
Chip temperature TC 40 150 °C
Storage temperature Tstg   125 °C
Junction to ambient RthjA   70 K/W
Junction case RthjC   3 K/W



Description

TLE 5250 is a monolithic IC in Smart Power technology for controlling and regulating the motor current in one phase of a bipolar stepping motor. There are other applications in driving DC motors and inductive loads that are operated on constant current.

The device has TTL-compatible logic inputs, includes a H-bridge with integrated, fast free-wheeling diodes plus dynamic limiting of the motor current by a chopper mode. The nominal current can be set continuously by a control voltage. Microstep mode can be produced by applying a sinusoidal control voltage. Two TLE 5250s, with a minimum of
external circuitry and a single supply voltage, form a complete system - that can be driven direct by an MC- for two-phase, bipolar stepping motors with output current of up to 2.5 A per phase. The outputs of the TLE 5250 are internally protected against shorted to ground, supply voltage and shorted load. The output stages are also disabled by undervoltage and overtemperature. All fault functions can be detected by the internal diagnostics, which can be read out serially.
