TLE 5226 G

Features: Features Low ON-resistance 2 x 0.2 , 2 x 0.35 (typ.Power - SO 20 - Package with integrated cooling areaOverload shutdownSelective thermal shutdownStatus monitoringOvervoltage protectionShorted circuit protectionStandby mode with low current consumptionC compatible inpuElectostatic disch...

product image

TLE 5226 G Picture
See larger image
SeekIC No. : 004520824 Detail

TLE 5226 G: Features: Features Low ON-resistance 2 x 0.2 , 2 x 0.35 (typ.Power - SO 20 - Package with integrated cooling areaOverload shutdownSelective thermal shutdownStatus monitoringOvervoltage protectionSh...

TLE 5226 G Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TLE 5226 G
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Features
Low ON-resistance 2 x  0.2 , 2 x 0.35 (typ.
Power - SO 20 - Package with integrated cooling area
Overload shutdown
Selective thermal shutdown
Status monitoring
Overvoltage protection
Shorted circuit protection
Standby mode with low current consumption
C compatible inpu
Electostatic discharge (ESD) protection


Application

Application
  All kinds of resistive and inductive loads (relays,electromagnetic valves)
  uC compatible power switch for 12 and 24 V application
  Solenoid control switch in automotive and industrial control systems


Pinout

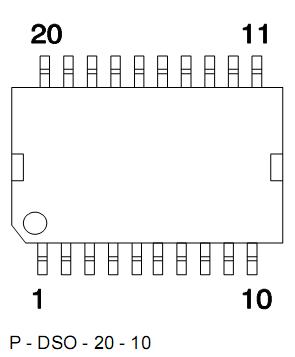

Connection Diagram


Specifications

Parameter Symbol Values Unit
Supply voltage VS -0.3 ... + 40 V
Supply voltage operational range VS + 4.8 ... + 32 V
Continuous drain source voltage (OUT1...OUT4) VDS 40 V
Input voltage IN1 to IN4, ENA V IN, V ENA - 0.3 ... + 6V V
Input voltage STBY VSTBY - 0.3 ... + 40
Status output voltage

 VST - 0.3 ... + 32 V
Operating temperature range
Storage temperature range		 T j
Tstg		 - 40 ... + 150
- 55 ... + 150		 °C
Output current per channel I D(lim) self limited A
Output current at reversal supply I D 1,2
ID 3,4
 - 4

- 2		 A
Status output current IST
 - 5 ... + 5 mA
Inductive load switch off dissipation energy T = 25°C EAS
 50 mJ
Thermal resistance
junction - case
junction - ambient @ min. footprint
junction - ambient @ 6 cm2
cooling area		 RthJC
R thJA		 4.5
50
40		 K/W



Description

General description
   Quad channel Low-Side-Switch (2x5A/2x3A) in Smart Power Technology (SPT) with four seperate in- puts and four open drain DMOS output stages. The TLE 5226 G is fully protected by embedded protecti- on functions and designed for automotive and industrial applications.
