TLE 5204

Features: FeaturesOutput current ±3 AI/O error diagnosticsShort-circuit proofFour-quadrant operationIntegrated free-wheeling diodesWide temperature rangeBreak low and break high, if open load detection is required, the device TLE 5203 will fit PinoutSpecifications Parameter Symbol Limit Val...

product image

TLE 5204 Picture
See larger image
SeekIC No. : 004520821 Detail

TLE 5204: Features: FeaturesOutput current ±3 AI/O error diagnosticsShort-circuit proofFour-quadrant operationIntegrated free-wheeling diodesWide temperature rangeBreak low and break high, if open load detect...

TLE 5204 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TLE 5204
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Features
Output current ±3 A
 I/O error diagnostics
Short-circuit proof
Four-quadrant operation
Integrated free-wheeling diodes
Wide temperature range
Break low and break high, if open load detection is required, the device TLE 5203 will fit


Pinout

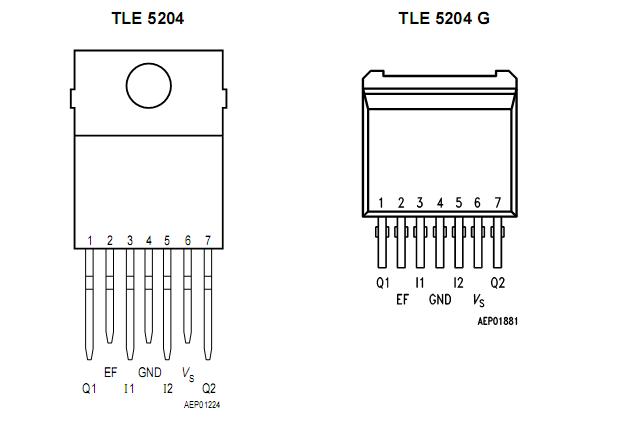

Connection Diagram


Specifications

Parameter Symbol Limit Values Unit Remarks
min. max.
Voltages
Supply voltage VS -0.3 40 V -
Supply voltage VS -1 - V t < 500ms; I S> - 5 A
Logic input voltages VI1, 2
 -0.3 7 v Vs = 0 - 40 v
Diagnostics output voltage VEF -0.3 7 V -
Currents
Free-wheeling current 1)

 IF -4 4 A Tj 150 °C
Output current (Diode) IQ -4 4 A -
Junction temperature Tj -40 150 °C -
Storage temperature Tstg -50 150 °C -
Temperatures
Junction temperature R th jC - 4 K/W -
Storage temperature Rth jA - 65 K/W -
Thermal Resistances
Supply voltage VS 6 24 V -
Logic input voltage VI1, 2 -0.3 7 V -
Switching frequency 2 )
 f - 1 kHz -
Junction temperature Tj -40 150 °C -



Description

Description
   TLE 5204 is an integrated power bridge with DMOS output stages for driving DC motors.This motor bridge is optimized for driving DC motors in reversible operation. The internal protective circuitry in particular ensures that no crossover currents can occur. Because the free-wheeling diodes are integrated, the external TLE 5204 circuitry that is necessary is reduced to the capacitors on the supply voltage. The control inputs have TTL/CMOS-compatible levels.
