Product Details

Description



Features:

Features
Output current ±3 A
 I/O error diagnostics
Short-circuit proof
Four-quadrant operation
Integrated free-wheeling diodes
Wide temperature range
Open load detection
Break low, if break high required, the device TLE 5204 will fit

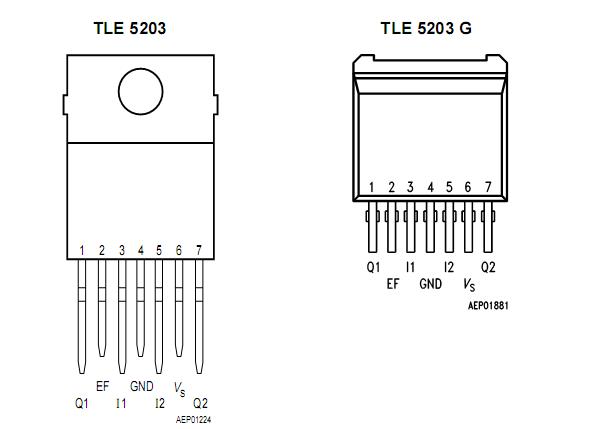

Pinout

Connection Diagram


Specifications

Parameter Symbol Limit Values Unit Remarks
min. max.
Voltages
Supply voltage VS -0.3 40 V -
Supply voltage VS -1 - V t < 500ms; I S> - 5 A
Logic input voltages VI1, 2
 -0.3 7 v Vs = 0 - 40 v
Diagnostics output voltage VEF -0.3 7 V -
Currents
Free-wheeling current1)

 IF -4 4 A Tj 150 °C
Output current (Diode) IQ -4 4 A -
Junction temperature Tj -40 150 °C -
Storage temperature Tstg -50 150 °C -
Temperatures
Junction temperature R th jC - 4 K/W -
Storage temperature Rth jA - 65 K/W -
Thermal Resistances
Supply voltage VS 6 24 V -
Logic input voltage VI1, 2 -0.3 7 V -
Switching frequency 2 )
 f - 1 kHz -
Junction temperature Tj -40 150 °C -



Description

Description
   TLE 5203 is an integrated power bridge with DMOS output stages for driving DC motors. This motor bridge is optimized for driving DC motors in reversible operation. The internal protective circuitry in particular ensures that no crossover currents can occur. Because the free-wheeling diodes are integrated, the external TLE 5203 circuitry that is necessary is reduced to the capacitors on the supply voltage. The control inputs have TTL/CMOS-compatible levels.
