TLE 4276

Features: • Low-drop voltage• Inhibit input• Very low current consumption• Short-circuit-proof• Reverse polarity proof• Suitable for use in automotive electronicsPinoutSpecifications Parameter Symbol Limit Values Unit Remarks min. max. Input V...

product image

TLE 4276 Picture
See larger image
SeekIC No. : 004520792 Detail

TLE 4276: Features: • Low-drop voltage• Inhibit input• Very low current consumption• Short-circuit-proof• Reverse polarity proof• Suitable for use in automotive electronics...

TLE 4276 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TLE 4276
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Low-drop voltage
• Inhibit input
• Very low current consumption
• Short-circuit-proof
• Reverse polarity proof
• Suitable for use in automotive electronics


Pinout

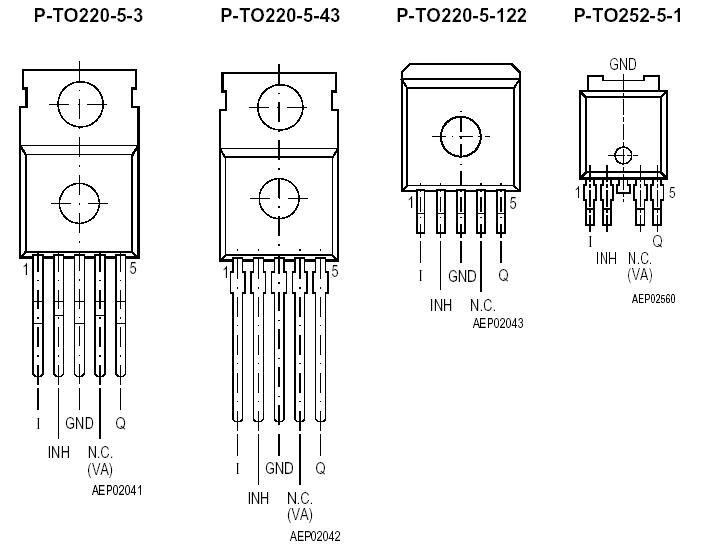

Connection Diagram


Specifications

Parameter Symbol Limit Values Unit Remarks
min. max.
Input
Voltage
VL		 -42 45 V -
Current II - - mA internally limited
Output Q
Voltage VQ
 -42 45 V
Current IQ - - A -
Reset Output
Voltage VR -0.3 10 V -
Current IR - -
-
 internally limited
Reset Delay D
Voltage VD  -0.1  40  V
Current ID  -  -  -  internally limited
Enable EN
Voltage VEN -  100  V
Current IEN -5 5 mA -t400ms



Description

The TLE 4276 is a low-drop voltage regulator in a TO220 package. The IC regulates an input voltage up to 40 V to VQrated = 5.0 V (V50), 8.5 V (V85), 10 V (V10) and adjustable voltage (V). The maximum output current is 400 mA. The IC can be switched off via the inhibit input, which causes the current consumption to drop below 10 mA. The TLE 4276 is shortcircuit- proof and incorporates temperature protection that disables it at over-temperature.
