TLE 4270

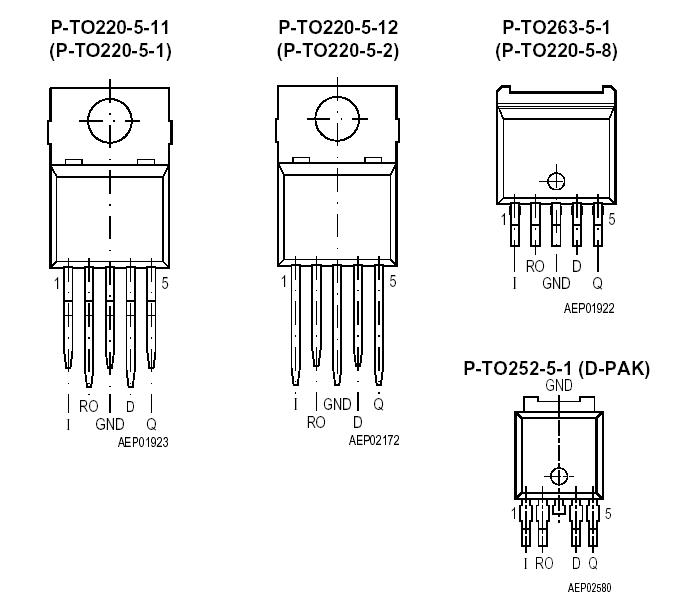

Application Description
   The IC regulates an input voltage in the range of 5.5 V < VI < 36 V to VQnom = 5.0 V. Up to 26 V it produces a regulated output current of more than 550 mA. Above 26 V the save-operating-area protection allows operation up to 36 V with a regulated output current of more than 300 mA. Overvoltage protection limits operation at 42 V. The overvoltage protection hysteresis restores operation if the input voltage has dropped below 36 V. A reset signal is generated for an output voltage of VQ < 4.5 V. The delay for power-on reset can be set externally with a capacitor.

   This TLE 4270 is a 5-V low-drop fixed-voltage regulator. The maximum input voltage is 42 V (65 V, 400 ms). Up to an input voltage of 26 V and for an output current up to 550 mA it regulates the output voltage within a 2 % accuracy. The short circuit protection limits the output current of more than 650 mA. The TLE 4270 incorporates overvoltage protection and temperature protection that disables the circuit at unpermissibly high temperatures.
