Product Details

Description



Features:

· Output voltage tolerance £ ± 2 %
· Low-drop voltage
· Very low standby current consumption
· Overtemperature protection
· Reverse polarity protection
· Short-circuit proof
· Setable reset threshold
· Wide temperature range
· Suitable for use in automotive electronics

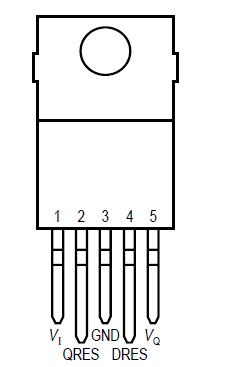

Pinout

Connection Diagram


Specifications

Parameter
Symbol
Limit Values
Unit
 Notes
min.
max.
Input
Input voltage VI 42
 45
 V
Reset Output
Voltage VR 0.3 42 V
Reset Delay
Voltage VD 0.3 42 V
Output
Output voltage VQ 0.3 7 V
Output current IQ   1.4 A Limited internally
GND
Current IGND 0.1   A
Temperatures
Junction temperature Tj   150 °C
Storage temperature Tstg 50 150 °C
Input voltage VI   45 V 1)
Junction temperature Tj 40 150 °C
Thermal Resistances
Junction ambient Rthja   70 K/W
Junction case Rthjc   10 K/W

Optimum reliability and lifetime can be ensured in integrated circuits by not exceeding a junction temperature of 125 °C during operation. Although operation up to the maximum permissible junction temperature of 150 °C is possible, such boundary conditions, if sustained, may affect device reliability.


Description

TLE 4265 is a 5-V low-drop voltage regulator in a TO220-5 package. Maximum input voltage is 45 V. It can produce an output current of > 200 mA. The IC is shortcircuit-proof and thermal protected.
