TLE 4262

Features: ` Output voltage tolerance ± 2 %` Low-drop voltage` Very low standby current consumption` Overtemperature protection` Reverse polarity protection` Short-circuit proof` Settable reset threshold` Wide temperature range` Suitable for use in automotive electronicsPinoutSpecifications P...

product image

TLE 4262 Picture
See larger image
SeekIC No. : 004520785 Detail

TLE 4262: Features: ` Output voltage tolerance ± 2 %` Low-drop voltage` Very low standby current consumption` Overtemperature protection` Reverse polarity protection` Short-circuit proof` Settable reset thre...

TLE 4262 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TLE 4262
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Output voltage tolerance ± 2 %
` Low-drop voltage
` Very low standby current consumption
` Overtemperature protection
` Reverse polarity protection
` Short-circuit proof
` Settable reset threshold
` Wide temperature range
` Suitable for use in automotive electronics


Pinout

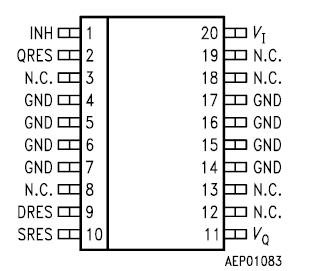

Connection Diagram


Specifications

Parameter
Symbol
Limit Values
Unit
 Remarks
min.
max.
Input
Input voltage VI 42 45 V
Input current II       Internally limited
Reset Output
Voltage VR 0.3 42 V
Current VR       Internally limited
Reset Input
Reset threshold VRE 0.3 6 V
Reset Delay
Voltage Vd 0.3 42 V
Current Id       Internally limited
Output
Voltage VQ 5.25 VI V
Current IQ     internally limited
Inhibit
Voltage Ve 42 45 V
Ground
Current IGND 0.5   A
Temperatures
Junction temperature Tj 50 150 °C
Storage temperature Tstg 50 150 °C
Operating Range
Input voltage VI 5.2 45 V *)
Junction temperature Tj 40 150 °C
Thermal resistance
junction-ambient		 Rth JA   70 K/W soldered
junction-case Rth JC   25 K/W
*) Corresponds with characteristics of drop voltage, output current and power description (see diagrams).


Description

TLE 4262 G is a 5-V low-drop voltage regulator in a P-DSO-20-6 SMD package. The maximum input voltage is 45 V. The maximum output current is more than 200 mA. The IC is short-circuit proof and incorporates temperature protection that disables the IC at overtemperature.

The TLE 4262 regulates an input voltage VI in the range of 6 V < VI < 45 V to VQrated = 5.0 V. A reset signal is generated for an output voltage of VQ < 4.5 V. This voltage threshold can be decreased to 3.5 V by external connection. The reset delay can be set externally with a capacitor. The IC can be switched off via the inhibit input, which causes the current consumption to drop from 720 mA to < 50 mA.
