TLE 4260

Features: • Low-drop voltage• Very low quiescent current• Low starting current consumption• Integrated temperature protection• Protection against reverse polarity• Input voltage up to 42 V• Overvoltage protection up to 65 V (£ 400 ms)• Short-ci...

product image

TLE 4260 Picture
See larger image
SeekIC No. : 004520782 Detail

TLE 4260: Features: • Low-drop voltage• Very low quiescent current• Low starting current consumption• Integrated temperature protection• Protection against reverse polarity•...

TLE 4260 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TLE 4260
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Low-drop voltage
• Very low quiescent current
• Low starting current consumption
• Integrated temperature protection
• Protection against reverse polarity
• Input voltage up to 42 V
• Overvoltage protection up to 65 V (£ 400 ms)
• Short-circuit proof
• Suited for automotive electronics
• Wide temperature range
• EMC proofed (100 V/m)


Pinout

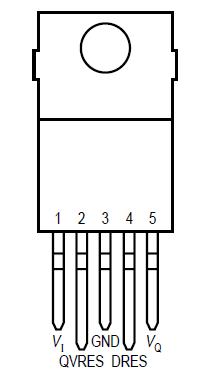

Connection Diagram


Specifications

Parameter
Symbol
Limit Values
Unit
 Remarks
min.
max.
Input (Pin 1)
Input voltage VI 42
 45
 V
Input voltage VI   65 V t 400 ms
Input current II   1.6 A
Reset Output (Pin 2)
Voltage VR 0.3 42 V
Current IR       Internally limited
Ground (Pin 3)
Current IGND 0.5   A Internally limited
Reset Delay (Pin 4)
Voltage VD 0.3 42 V
Current ID       Internally limited
Output (Pin 5)
Voltage VI VQ 5.25 VI V
Current IQ   1.4 A
Watchdog
Voltage VW 0.3 VI V
Temperatures
Junction temperature Tj   32 °C
Storage temperature Tstg 50 150 °C
Input voltage VI   32 V 1)
Junction temperature Tj 40 165 °C
Thermal Resistances
Junction ambient Rthja   65 K/W
Junction case Rthjc   3 K/W

1) See diagram "Output Current versus Input Voltage"


Description

TLE 4260; S is a 5-V low-drop fixed-voltage regulator in a P-TO220-5-H/S package. The maximum input voltage is 42 V (65 V/£ 400 ms). The device can produce an output current of more than 500 mA. It is shortcircuit-proof and incorporates temperature protection that disables the circuit at unpermissibly high temperatures. Due to the wide temperature range of 40 to 150 °C, the TLE 4260; S is also suitable for use in automotive applications.

The TLE 4260 regulates an input voltage VI in the range 6 < VI < 35 V to VQnominal = 5.0 V. A reset signal is generated for an output voltage of VQ < 4.75 V. The reset delay can be set externally with a capacitor. If the output current is reduced below 10 mA, the regulator switches internally to standby and the reset generator is turned off. The standby current drops to max. 700 mA.
