TLE 4226 G

Features: ` Quad 50 mA outputs` Dual 500 mA outputs` Operating range VS = 5 V ± 5 %` Output stages with power limiting` Open-collector outputs` Shorted load protected within operating range` Clamp-diodes to ground` Status signaling` TTL-compatible control inputs` Overtemperature monitoring` Temper...

product image

TLE 4226 G Picture
See larger image
SeekIC No. : 004520780 Detail

TLE 4226 G: Features: ` Quad 50 mA outputs` Dual 500 mA outputs` Operating range VS = 5 V ± 5 %` Output stages with power limiting` Open-collector outputs` Shorted load protected within operating range` Clamp-d...

TLE 4226 G Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TLE 4226 G
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Quad 50 mA outputs
` Dual 500 mA outputs
` Operating range VS = 5 V ± 5 %
` Output stages with power limiting
` Open-collector outputs
` Shorted load protected within operating range
` Clamp-diodes to ground
` Status signaling
` TTL-compatible control inputs
` Overtemperature monitoring
` Temperature range 40 to 125 °C


Pinout

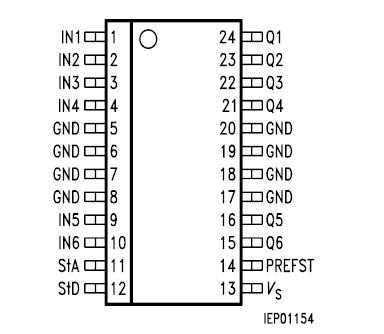

Connection Diagram


Specifications

Parameter
Symbol
Limit Values
Unit
 Remarks
min.
max.
Supply voltage
VS
1
10
V

Supply voltage load circuit
VQ1-6
0.7
25
V

Input voltage
VIN1-6 , VPREFST
0.7
20
V

Output current
IQ1-6
limited internally
Current at reverse poling
IQ5-6
500
mA

Current at reverse poling
IQ1-4
50
mA

Clamping current
IQZ5-6
700
mA
 see diagram
Clamping current
IQZ1-4
70
mA

Junction temperature
Tj
40
150
°C
 Overtemperature
protection shuts down the switches 5 and 6at 165 °C
Storage temperature
Tstg
55
125
°C
Supply voltage
VS
4.75
5.25
V
 full function, but statusoutputs cannot beevaluated

VS
4
Output voltage
VQ
0.3
24
V

Ambient temperature
TA
40
110
°C
 Tj £ 150 °C
Invert current for Q1-6 in total
Isup
50
mA

Input voltage
VIN
0.5
15
V

Thermal resistance
junction to case
Rth JC
15
K/W
 1)
junction to ambient
Rth JA
65
K/W
 1)
1) Pins 5 to 8 and 17 to 20 have to be connected to the ground-plane used as thermal heatsink to achieve the
optimum thermal resistance.


Description

TLE 4226 G is an integrated, sixfold low-side power switch with power limiting of the 0.5 A outputs, shorted-load protection of the 50 mA switches and Z-diodes on all switches from output to ground. TLE 4226 G is particularly suitable for automotive and industrial applications.
