TLE 4214 G

Features: ` Double low-side switch, 2 x 0.5 A` Power limitation` Overtemperature shutdown` Overvoltage shutdown` Status monitoring` Shorted-load protection` Integrated clamp diodes` Temperature range 40 to 125 °CApplication· Overload,· Open load,· Shorted load to ground,· Overvoltage,· Overtemper...

product image

TLE 4214 G Picture
See larger image
SeekIC No. : 004520778 Detail

TLE 4214 G: Features: ` Double low-side switch, 2 x 0.5 A` Power limitation` Overtemperature shutdown` Overvoltage shutdown` Status monitoring` Shorted-load protection` Integrated clamp diodes` Temperature rang...

TLE 4214 G Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TLE 4214 G
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Double low-side switch, 2 x 0.5 A
` Power limitation
` Overtemperature shutdown
` Overvoltage shutdown
` Status monitoring
` Shorted-load protection
` Integrated clamp diodes
` Temperature range 40 to 125 °C


Application

· Overload,
· Open load,
· Shorted load to ground,
· Overvoltage,
· Overtemperature.


Pinout

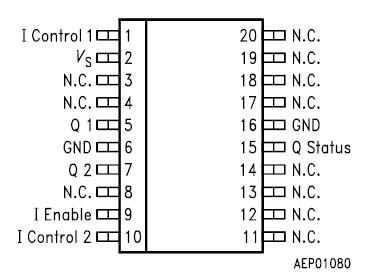

Connection Diagram


Specifications

Parameter
Symbol
Limit Values
Unit
min.
max.
Supply voltage, t < 0.2 s
VS
70
V
Supply voltage
VS
1.3
40
V
Inhibit voltage
VI
13
40
V
Output voltage (status output)
VO
0.3
40
V
Output voltage (switching stages)
VQ
0.3
+ VS
V
Output current (switching stages)
IQ
internally
limited
Current with reverse polarity, t < 0.1 s
IQ
0.7
A
Output current positive clamp
IQ
0.7
A
Ground current
IGND
1.4
2.0
A
Output current (status output)
IO
10
mA
Junction temperature
Tj
150
°C
Storage temperature
Tstg
50
150
°C
Supply voltage
VS
6 1)
25
V
Supply voltage slew rate
dVS/dt
1
1
V/ms
Output current (switching stages)
IQ
0.5
0.5
A
Input voltage
VI, VF
5
32
V
Output current (status output)
IO
0
5
mA
Ambient temperature
TA
40
125
°C
