Product Details

Description



Features:

•Step up converter (Boost Voltage)
•Boost Over-and Under-Voltage-Lockout
•Step down converter (Logic Voltage)
•2% output voltage to lerance
•LogicOver-and Under-Voltage-Lockout
•Overtemperature Shutdown
•Power ON/OFF reset generator
•Digital window watchdog
•System Enable Output
•Ambient operation temperature range  40°C to 125°C
•Wide Supply voltage operation range
•Very low curren tconsumption
•Very small P-DSO-14-3 SMD package

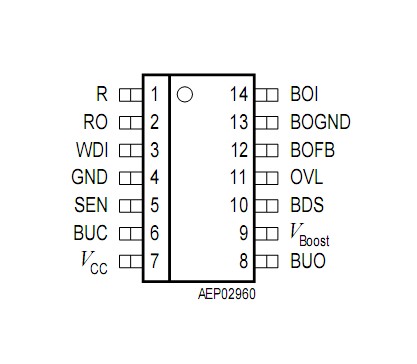

Pinout

  Connection Diagram


Specifications

Parameter Symbol LimitValues Unit Remarks
min. max.
Voltages
Boostinputvoltage

VBOI 0.3 46 V
Boostoutputvoltage
VBOOST 0.3 46 V
Boostfeedbackvoltage
VBOFB 0.3 46 V
Buckoutputvoltage
VBUO 1 46 V
Buckdriversupplyvoltage
VBDS 0.3 48 V
Buckcompensationinput
voltage
VBUC 0.3 6.8 V
Logicsupplyvoltage



VCC 0.3 6.8 V
Resetoutputvoltage VRO 0.3 6.8 V

SystemEnableoutput
voltage
VSEN 0.3 6.8 V
Currentreferencevoltage



VR
0.3 6.8 V
Watchdoginputvoltage VWDI 0.3 6.8 V
OVLoutputvoltage VOVL 0.3 6.8 V
ESD-Protection(HumanBodyModel;R=1.5kΩ;C=100pF)
AllpinstoGND
VHBM 2 2 KV



Description

The TLE6711G is a multifunctional power supply circuit especially designed for automotivea pplications.

It delivers a programmable step up voltage (Boost) and aprecise 5V fully short circuit protected output voltage (Buck).

The TLE6711G contains a power on reset feature to start up the system,an integrated digital window watchdog tomonitor the connected microcontroller and a system enable output to indicate the microcontroller window watchdog faults.

ThedeviceisbasedonInfineon'spowertechnologySPT® which allows bipolar and CMOS control circuitry to be integrated with DMOSpower devices on the same monolithic circuitry.

The very small P-DSO-14-3 SMD packages meet the application require ments. Fur ther more ,the build-in features like under-andover voltage lockout for boost-and buck-voltage and the overtemperature shutdown feature increase the reliability of the TLE6711G supply system.
