TLE6208-6G

Motor / Motion / Ignition Controllers & Drivers Six-fold Half-Bridge Driver

product image

TLE6208-6G Picture
See larger image
SeekIC No. : 00533908 Detail

TLE6208-6G: Motor / Motion / Ignition Controllers & Drivers Six-fold Half-Bridge Driver

TLE6208-6G Data Sheet

floor Price/Ceiling Price

US $ 1.97~2.35 / Piece | Get Latest Price
Part Number:
TLE6208-6G
Mfg:
Infineon Technologies
Supply Ability:
5000

Price Break

  • Qty
  • 0~650
  • 650~1000
  • 1000~2000
  • Unit Price
  • $2.35
  • $2.05
  • $1.97
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/1

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Type : DC Motor Driver Operating Supply Voltage : 6.6 V to 40 V
Supply Current : 4 mA Mounting Style : SMD/SMT
Package / Case : DSO Packaging : Reel

Description

Product :
Mounting Style : SMD/SMT
Packaging : Reel
Supply Current : 4 mA
Type : DC Motor Driver
Package / Case : DSO
Operating Supply Voltage : 6.6 V to 40 V


Features:

• Six High-Side and six Low-Side-Drivers
• Free configurable as switch, halfbridge or H-bridge
• Optimized for DC motor management applications
• 0.6 A continuous (1 A peak) current per switch
• RDS ON; typ. 0.8 Ω, @ 25 °C per switch
• Outputs fully short circuit protected with diagnosis
• Overtemperature-Protection with hysteresis and diagnosis
• Temperature prewarning
• Standard SPI-Interface
• Very low current consumption (typ. 10 µA, @ 25 °C) in stand-by (Inhibit) mode
• Over- and Undervoltage-Lockout
• CMOS/TTL compatible inputs with hysteresis
• Internal clamp diodes
• Enhanced power P-DSO-Package

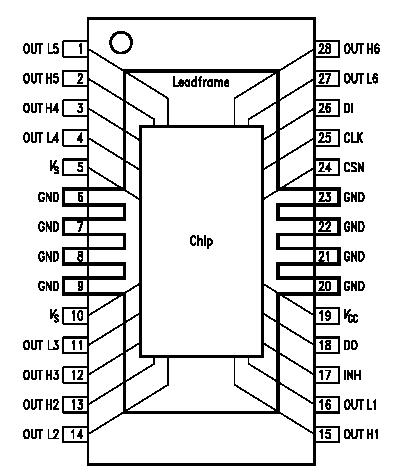

Pinout

Connection Diagram


Specifications

Parameter Symbol Limit Values Unit Remarks
min. max.
Voltages
Supply voltage VS -0.3 40 V
Supply voltage VS -1 V t < 0.5 s; IS > 2 A
Logic supply voltage VCC 0.3 5.5 V 0 V < VS < 40 V
Logic input voltages
(DI, CLK, CSN, INH)		 VI 0.3 5.5 V 0 V < VS < 40 V
0 V < VCC < 5.5 V
Logic output voltage
(DO)		 VDO 0.3 VCC V 0 V < VS < 40 V
0 V < VCC < 5.5 V
Currents
Output current (cont.),
if Bit13 (OCSD) is set.		 IOUT1-6 A internal limited
Output current (cont.),
if Bit13 (OCSD) is deactivated..		 IOUT1-6 -1.5 1.5 A VDS = 12 V
-0.7 0.7 A VDS = 20 V
-0.25 0.25 A VDS = 40 V
Output current (peak),
if Bit13 (OCSD) is set.		 IOUT1-6 A internal limited
Output current (peak),
if Bit13 (OCSD) is deactivated.
tP < 50 ms; t = 1 s;		 IOUT1-6 -2 2 A VDS = 12 V
-0.9 0.9 A VDS = 20 V
-0.3 0.3 A VDS = 40 V
Temperatures
Junction temperature Tj -40 150
Storage temperature Tstg -50 150



Description

The TLE6208-6G is a fully protected Hex-Half-Bridge-Driver designed specifically for automotive and industrial motion control applications. The part is based on Infineons Smart Power Technology SPT® which allows bipolar and CMOS control circuitry in accordance with DMOS power devices existing on the same monolithic circuitry. The six low and high side drivers are freely configurable and can be controlled separately. Therefore all kind of loads can be combined. In motion control up to 5 actuators (DCMotors) TLE6208-6G can be connected to the 6 halfbridge-outputs (cascade configuration). Operation modes forward (cw), reverse (ccw), brake and high impedance are controlled from a standard SPI-Interface. The possibility to control the outputs via software from a central logic, allows limiting the power dissipation. So the standard P-DSO-28-6-package meets the application requirements and saves PCB-Board-space and cost.

Furthermore the build-in features like Over- and Undervoltage-Lockout TLE6208-6G, Over- Temperature-Protection and the very low quiescent current in stand-by mode opens a wide range of automotive- and industrial-applications.




Parameters:

Technical/Catalog InformationTLE6208-6G
VendorInfineon Technologies (VA)
CategoryIntegrated Circuits (ICs)
ApplicationsAutomotive
Number of Outputs5
Voltage - Supply5.5 V ~ 40 V
Voltage - Load-
Current - Output600mA
Operating Temperature-40°C ~ 150°C
Package / CaseDSO-28
PackagingDigi-Reel?
Lead Free StatusContains Lead
RoHS StatusRoHS Non-Compliant
Other Names TLE6208 6G
TLE62086G
TLE6208 6GINDKR ND
TLE62086GINDKRND
TLE6208-6GINDKR
