TLE6389

Features: • Operation from 5V to 60V Input Voltage• 100% Maximum Duty Cycle• Efficiency >90%• Output Current up to 3A• Less than 100A Quiescent Current• 2A Max Shutdown Current• Up to 350kHz Switching Frequency• Adjustable and Fixed 5V and 3.3V Ou...

product image

TLE6389 Picture
See larger image
SeekIC No. : 004521059 Detail

TLE6389: Features: • Operation from 5V to 60V Input Voltage• 100% Maximum Duty Cycle• Efficiency >90%• Output Current up to 3A• Less than 100A Quiescent Current• 2A Max...

TLE6389 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TLE6389
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Operation from 5V to 60V Input Voltage
• 100% Maximum Duty Cycle
• Efficiency >90%
• Output Current up to 3A
• Less than 100A Quiescent Current
• 2A Max Shutdown Current
• Up to 350kHz Switching Frequency
• Adjustable and Fixed 5V and 3.3V Output Voltage versions
• 3% output voltage accuracy (PWM Mode)
• Current-Mode Control Scheme
• On Chip Low Battery Detector
• Ambient operation range -40°C to 125°C

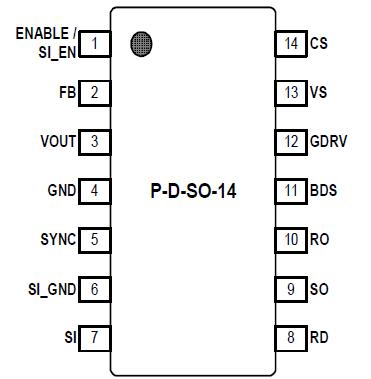

Pinout

Connection Diagram


Specifications

Item Parameter Symbol Limit Values Unit Remarks
min. max.
  Supply Input

1.0.1



 Voltage VS -0.3 60 V
1.0.2 Current IS
  Current Sense Input
1.0.3 Voltage VCS -0.3 60 V
1.0.4 Current ICS
  Gate Drive Output
1.0.5 Voltage VGDRV -0.3 6.8 V |VS
VGDRV|<6.8V
1.0.6 Current IGDRV Internally limited
  Buck Drive Supply Input
1.0.7 Voltage VBDS -0.3 55 V |VS VBDS|<6.8V
1.0.8 Current IBDS
  Feedback Input
1.0.9 Voltage VFB -0.3 6.8 V
1.0.10 Current IFB
  SI_Enable Input
1.0.11 Voltage VSI_ENAB
LE		 -0.3 6.8 V (TLE6389G50-1,
TLE6389G33-1
only)
1.0.12 Current ISI_ENABL
E
  SI_GND Input
1.0.13 Voltage VSI_GND -0.3 60 V (TLE6389G50-1,
TLE6389G33-1
only)
1.0.14 Current ISI_GND
  Enable Input



Description

The TLE6389 step-down DC-DC switching controllers provide high efficiency over loads ranging from 1mA up to 3A. A unique PWM/PFM control scheme operates with up to a 100% duty cycle, resulting in very low dropout voltage. This control scheme eliminates minimum load requirements and reduces the supply current under light loads to 100A.

These step-down controllers drive an external P-channel MOSFET, allowing design flexibility for applications up to 3A. A high switching frequency (up to 350kHz) and operation in continuous- onduction mode allow the use of tiny surface-mount inductors.

Output capacitor requirements are also reduced, minimizing PC board area and system costs. The output voltage is preset at 5V (TLE6389-50) or 3.3V (TLE6389-33) and adjustable for the TLE6389. Input voltages can be up to 60V.
