Product Details

Description



Features:

• Bus failure management
• Low power mode management
• Receive only mode for CAN
• CAN data transmission rate up to 125 kBaud
• Low-dropout voltage 5V regulator
• High side switch
• 2 wake-up inputs
• Power on and under-voltage reset generator
• Window watchdog
• Fail-safe output
• Early warning feature
• Standard 8 bit SPI-interface
• Wide input voltage range
• Wide temperature range
• Enhanced power P-DSO-Package

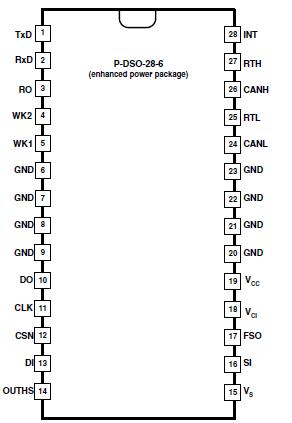

Pinout

Connection Diagram


Specifications

Parameter
Symbol
Limit Values
Unit
Remarks
Min.
Max.
Voltages
Supply voltage
VS
-0.3
28
V
Supply voltage
VS
-0.3
40
V
tp< 0.5s; tp/T < 0.1
Regulator output voltage
VCC
-0.3
5.5
V
CAN bus voltage (CANH, CANL)
VCANH/L
-20
28
V
CAN bus voltage (CANH, CANL)
VCANH/L
-40
40
V
VS >0 V
tp< 0.5s; tp/T < 0.1
Logic input voltages (DI, CLK, CSN, OSC, TxD)
VI
-0.3
VCC+0.3
V
0 V < VS < 24 V
0 V < VCC < 5.5 V
Logic output voltage
(DO, RO, INT, RxD, FSO)
VDRI,RD
-0.3
VCC+0.3
V
0 V < VS < 24 V
0 V < VCC < 5.5 V
Termination input voltage(RTH,
RTL)
VTL /TH
-0.3
VS+0.3
V
0 V < VS < 24 V
0 V < VCC < 5.5 V
Input voltages at WK1/2 and SI
VWK/SI
-40
40
V
Electrostatic discharge
voltage at pin CANH, CANL, SI, VS
Vesd
4000
4000
V
human body model,
C = 100 pF, R = 1.5 k
Electrostatic discharge
voltage at any other pin
Vesd
2000
2000
V
human body model,
C = 100 pF, R = 1.5 k
Currents
Output current; Vcc
ICC
-
-
A
 internally limited
Output current; OUTHS IOUTH1
*)
0.2
A
 *)internally limited
Temperatures
Junction temperature Tj -40 150 -
Storage temperature
Tstg
 -50 150 -
Note: Maximum ratings are absolute ratings; exceeding any one of these values may cause irreversible damage to the integrated circuit.


Description

The TLE6263 is a monolithic integrated circuit in an enhanced power P-DSO-28-6 package. The IC is optimized for use in advanced automotive electronic control units for body and convenience applications.

To support this applications the TLE6263 covers the main smart power functions such as failure tolerant low speed CAN-transceiver for differential mode data transmission, low dropout voltage regulator (LDO) for internal and external 5V supply as well as a SPI (serial peripheral interface) to control and monitor the IC. Further there are integrated additional features like a high side switch that can be used e.g. for cyclic supply of an external wake-up circuitry, two wake-up inputs, a window watchdog circuit with fail safe output as well as a reset and early warning feature.

The IC TLE6263 is designed to withstand the severe conditions of automotive applications.
