Features:

• Single-wire transceiver, suitable for LIN protocol
• Compatible to LIN specification
• Compatible to ISO 9141 functions
• Transmission rate up to 20 kBaud
• Very low current consumption in stand-by mode
• Short circuit proof to ground and battery
• Overtemperature protection


Pinout

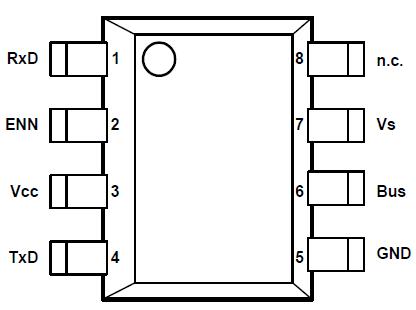

Connection Diagram


Specifications

Parameter
Symbol
Limit Values
Unit
Remarks
Min.
Max.
Voltages
Supply voltage
VCC
-0.3
6
V

Battery Supply voltage
VS
-0.3
40
V

Bus input voltage
Vbus
-20
32
V

Bus input voltage
Vbus
-20
40
V
t < 1 s
Logic voltages at
EN, TxD, RxD
VI
-0.3
VCC+0.3
V
0 V < VCC < 5.5 V
Electrostatic discharge
voltage at Vs, Bus
VESD
-4
4
kV
human body model
(100 pF via 1.5 k)
Electrostatic discharge
voltage
VESD
-2
2
kV
human body model
(100 pF via 1.5 k)
Temperatures
Junction temperature
Tj
-40
150
-
Note: Maximum ratings are absolute ratings; exceeding any one of these values may cause irreversible damage to the integrated circuit.


Description

The single-wire transceiver TLE6258 is a monolithic integrated circuit in a P-DSO-8-3 package. It works as an interface between the protocol controller and the physical bus. The TLE 6258 is especially suitable to drive the bus line in LIN systems in automotive and industrial applications. Further it can be used in standard ISO9141 systems.

In order to reduce the current consumption the TLE6258 offers a stand-by mode. A wake-up caused by a message on the bus sets the RxD output low until the device is switched to normal operation mode.

The IC of the TLE6258 is based on the Siemens Power Technology SPT® which allows bipolar and CMOS control circuitry in accordance with DMOS power devices existing on the same monolithic circuit.

The TLE6258 is designed to withstand the severe conditions of automotive applications.
