TLE6254-2G

Features: • Data transmission rate up to 125 kBaud• Very low current consumption in stand-by and sleep operation mode• Implemented receive-only mode• Optimized EMC behavior• Wake-up input pin, dual edge sensitive• Battery fail flag• Extended bus failure ma...

product image

TLE6254-2G Picture
See larger image
SeekIC No. : 004521049 Detail

TLE6254-2G: Features: • Data transmission rate up to 125 kBaud• Very low current consumption in stand-by and sleep operation mode• Implemented receive-only mode• Optimized EMC behavior&#...

TLE6254-2G Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TLE6254-2G
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Data transmission rate up to 125 kBaud
• Very low current consumption in stand-by and sleep operation mode
• Implemented receive-only mode
• Optimized EMC behavior
• Wake-up input pin, dual edge sensitive
• Battery fail flag
• Extended bus failure management to guarantee safe operation during all bus line failure events
• Full support of dual failure conditions
• Fully wake-up capability during all bus line failures conditions
• Supports one-wire transmission mode with ground offset voltages up to 1.5
• Prevention from bus occupation in case of CAN controller failure
• Thermal protection
• Bus line error protection against transients in automotive environment


Pinout

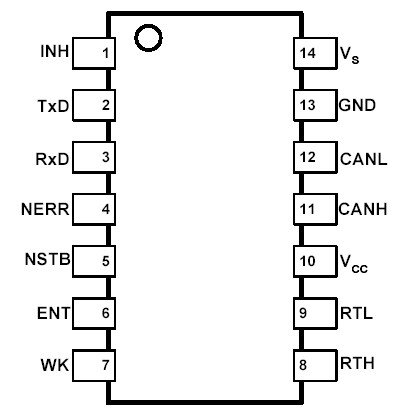

Connection Diagram


Specifications

Parameter Symbol Limit Values Unit Notes
min. max.
Input voltage at VBAT VS 0.3 40 V -
Logic supply voltage VCC VCC 0.3 6 V -
Input voltage at TxD, RxD, NERR,
NSTB and ENT		 VIN 0.3 VCC + 0.3 V -
Input voltage at CANH and CANL VBUS 40 40 V -
Transient voltage at CANH and CANL VBUS - 150 100 V 1)
Input voltage at WAKE VWK
40 V -
Output current at WAKE IWK
 5 mA -
Input voltage at INH VINH 0.3 VBAT + 0.3 V -
Input voltage at RTH and RTL VRTH/L 0.3 40 V -
Junction temperature Tj 40 160 -
Storage temperature Tstg 55 155 -
Electrostatic discharge voltage
at pin CANH, CANL, RTH, RTL,VBAT		 Vesd - 4 4 kV 2)
Electrostatic discharge voltage
at any other pin		 Vesd - 2 2 kV

1) See ISO 7637
2) Human body model: equivalent to discharging a 100 pF capacitor through a 1.5 kΩ resistor.


Description

The CAN-Transceiver TLE6254-2G works as the interface between the CAN protocol controller and the physical CAN bus-lines.

TLE6254-2G is optimized for low-speed data transmission (up to 125 kBaud) in automotive and industrial applications.

While no data TLE6254-2G is transferred, the power consumption can be minimized by multiple low power modes.

In normal operation mode a differential signal TLE6254-2G is transmitted/received. When bus wiring failures are detected the device automatically switches in a dedicated single-wire mode to maintain communication.
