On Time (Max)
:
Off Time (Max)
:
Operating Supply Voltage
:
Mounting Style
: SMD/SMT
Maximum Operating Temperature
: + 150 C
Number of Outputs
: 4
On Resistance (Max)
: 0.35 Ohms
Supply Current (Max)
: 8 mA
Package / Case
: DSO-22
Features: • Shorted Circuit Protection
• Overtemperature Protection
• Overvoltage Protection
• Parallel Control of the Inputs (PWM Applications)
• Seperate Diagnostic Pin for Each Channel
• Power - SO 20 - Package with integrated cooling area
• Standby mode with low current consumption
• µC compatible Input
• Electrostatic Discharge (ESD) Protection
Application• All kinds of resistive and inductive loads (relays,electromagnetic valves)
• µC compatible power switch for 12 and 24 V applications
• Solenoid control switch in automotive and industrial control systems
• Robotic Controls

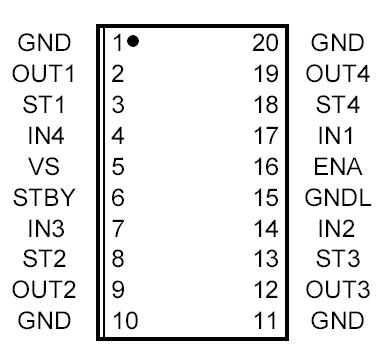

Pinout
Specifications
| Parameter |
Symbol |
Values |
Unit |
| Supply voltage |
VS |
-0.3 ... + 40 |
V |
| Continuous drain source voltage (OUT1...OUT4) |
VDS |
45 |
V |
| Input voltage IN1 to IN4, ENA |
VIN , VENA |
-0.3 ... + 6 |
V |
| Input voltage STBY |
VSTBY |
-0.3 ... + 40 |
V |
| Status output voltage |
VST |
-0.3 ... + 32 |
V |
Load Dump Protection VLoad Dump = UP+US; UP=13.5 V
RI1)=2 Ω; td=400ms; IN = low or high
With RL= 5 Ω for Ch. 1,2; 10 Ω for Ch. 3,4
(ID = 2,7A respectively 1,35A)
|
VLoad Dump2) |
55 |
V |
Operating temperature range
Storage temperature range |
Tj
Tstg |
- 40 ... + 150
- 55 ... + 150 |
|
| Output current per channel (see page 6) |
ID(lim) |
ID(lim) min |
A |
| Status output current |
IST |
- 5 ... + 5 |
mA |
| Inductive load switch off energy (single pulse) Tj = 25°C |
EAS |
50 |
mJ |
Electrostatic Discharge Voltage (human body model)
according to MIL STD 883D, method 3015.7 and EOS/ESD
assn. standard S5.1 - 1993
|
VESD |
2000 |
V |
| DIN Humidity Category, DIN 40 040 |
|
E |
|
| IEC Climatic Category, DIN IEC 68-1 |
|
40/150/56 |
|
Thermal resistance
junction case (die soldered on the frame)
junction - ambient @ min. footprint
junction - ambient @ 6 cm2 cooling area
|
RthJC
RthJA |
2
50
38 |
K/W |
DescriptionQuad channel Low-Side-Switch (2x5A/2x3A) TLE6228GP in Smart Power Technology (SPT) with four separate inputs and four open drain DMOS output stages. The TLE 6228 GP is fully protected by embedded protection functions and designed for automotive and industrial applications. Each channel has its own status signal for diagnostic feedback. Therefore the TLE6228GP is particularly suitable for ABS or Powertrain Systems.
Parameters: | Technical/Catalog Information | TLE6228GP |
| Vendor | Infineon Technologies |
| Category | Integrated Circuits (ICs) |
| Package / Case | DSO-20 |
| Mounting Type | Surface Mount |
| Type | Low Side |
| Voltage - Supply | 4.8 V ~ 32 V |
| On-State Resistance | 230 mOhm |
| Current - Output / Channel | - |
| Current - Peak Output | 5.5A |
| Packaging | - |
| Input Type | Non-Inverting |
| Number of Outputs | 4 |
| Operating Temperature | -40°C ~ 150°C |
| Lead Free Status | Contains Lead |
| RoHS Status | RoHS Non-Compliant |
| Other Names | TLE6228GP
TLE6228GP
|
TLE6228GP Data Sheet
