Features:

 Dual TLC2933 by Multichip Module (MCM) Technology
Voltage-Controlled Oscillators (VCO) Section
    Complete Oscillator Using Only One External Bias Resistor (RBIAS)
   Recommended Lock Frequency Range
    37 MHz to 60 MHz
    (VDD = 3.3 V ± 0.15 V, TA = 20°C to 75°C)
    43 MHz to 100 MHz
    (VDD = 5 V ± 0.25 V, TA = 20°C to 75°C)
Includes a High Speed Edge-Triggered Phase Frequency Detector (PFD) With Internal Charge Pump
Independent VCO, PFD Power-Down Mode


Pinout

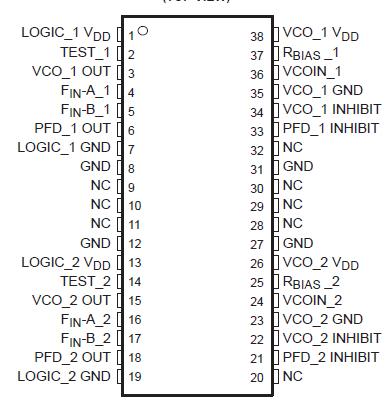

Connection Diagram


Specifications

Supply voltage (each supply), VDD (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 V
Input voltage range (each input), VI (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 to VDD + 0.5 V
Input current (each input), II . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . .  . . . . . . ±20 mA
Output current (each output), IO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±20 mA
Continuous total power dissipation at (or below) TA = 25°C (see Note 2) . . . . . . . . . . . . . . . . . . . . . . . . 1160 mW
Operating free-air temperature range, TA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20°C to 75°C
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . 65°C to 150°C
Lead temperature 1,6 mm (1/16 in) from case for 10 seconds . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 260°C
† Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and
functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not
implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
NOTES: 1. All voltage values are with respect to network ground terminal.
2. For operation above 25°C free-air temperature, derate linearly at the rate of 9.3 mW/°C.


Description

The TLC2943 is a multichip module product that uses two TLC2933 chips. The TLC2933 chip is composed of a voltage-controlled oscillator (VCO) and an edge-triggered-type phase frequency detector (PFD). The oscillation frequency range of the VCO is set by an external bias resistor (R BIAS ). The high-speed PFD of TLC2943 with internal charge pump detects the phase difference between the reference frequency input and signal frequency input from the external counter. Both the VCO and the PFD have inhibit functions that can be used as a power-down mode. The high-speed and stable VCO characteristics of the TLC2933 make the TLC2943 suitable for use in dual high-performance phase-locked loop (PLL) systems.
