TLC2940

PinoutSpecificationsSupply voltage (any supply), VDD(see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 VInput voltage range (any input), VI (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.5 V to VDD + 0.5 VInput curre...

product image

TLC2940 Picture
See larger image
SeekIC No. : 004520551 Detail

TLC2940: PinoutSpecificationsSupply voltage (any supply), VDD(see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 VInput voltage range (any input), VI (se...

TLC2940 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TLC2940
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Pinout

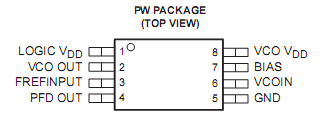

Connection Diagram


Specifications

Supply voltage (any supply), VDD (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 V
Input voltage range (any input), VI (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.5 V to VDD + 0.5 V
Input current (any input), II. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .±20 mA
Output current (any output), IO. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .±20 mA
Continuous total power dissipation (TA= 25°C or below), PD(see Note 2) . . . . . . . . . . . . . . . . . . . . . .700 mW
Operating free-air temperature range, TA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20°C to 85°C
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65°C to 150°C
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .260°C



Description

The TLC2940 is a high-performance analog voltage-controlled oscillator (VCO) using Texas Instruments 0.8-µm CMOS process. The VCO oscillating operation can be performed by an external bias resistor connected to the internal oscillation circuitry, and the oscillation frequency range is set by this bias resistor. The lock frequency range of TLC2940 for PLL applications is from 35 MHz to 75 MHz (over operating free-air temperature range,VDD= 5 V ±5%), and from 28 MHz to 50 MHz (over operating free-air temperature range, VDD= 3 V ±5%).
The stable analog PLL can be configured within these frequency ranges.

The TLC2940 is available in an 8-pin TSSOP surface-mount package.

The PLL block of TLC2940 is configured using a counter, a required LPF, and a phase frequency detector (PFD).
