TLC2262AQD

Mounting Style : SMD/SMT
Maximum Operating Temperature : + 125 C
Number of Channels : 2
Package / Case : SOIC-8
Packaging : Tube
Shutdown : No
Common Mode Rejection Ratio (Min) : 70 dB
Operating Supply Voltage : 16 V
Output Current : 4 mA
Input Offset Voltage : 0.95 mV
Slew Rate : 0.55 V/us
Input Bias Current (Max) : 1 pA (typ)


Features:

 Output Swing includes Both Supply Rails
 Low Noise . . . 12 nV//Hz Typ at f = 1 kHz
  Low Input Bias Current . . . 1 pA Typ
  Fully Specified for Both Single-Supply and  Split-Supply Operation
  Low Power . . . 500 mA Max
  Common-Mode Input Voltage Range Includes Negative Rail

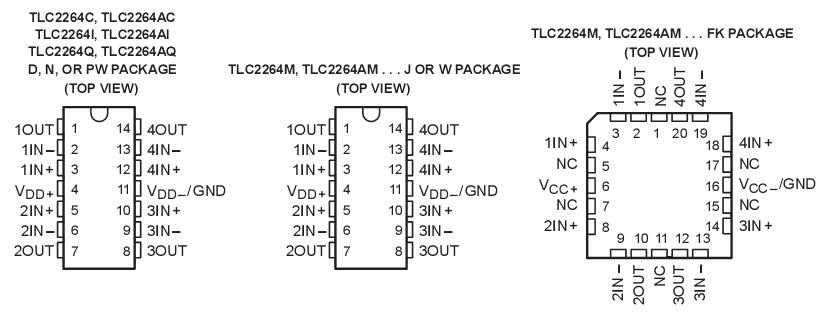

Pinout




Specifications

Supply voltage, V_DD+(see Note 1)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . .. . . .  . . . . 8 V
Supply voltage, V_DD(see Note 1)   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 V
Differential input voltage, V_ID(see Note 2)  . . . . . . . . . . . . . . . . . . . . . . . .  . .. . . . . . . . .  . . . . . ±16 V
Input voltage, V_I(any input, see Note 1) . . . . . . . . . .  . . . . . . . . . . . . . . .. . . . .  V_DD 0.3 V to V_DD+
Input current, I_I(each input)  . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . . . .  . . . . . . . . . . . . ±5 mA
Output current, I_O. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .   . . . . . . . . . . ±50 mA
Total current into V_DD+  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . . . . .±50 mA
Total current out of V_DD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . . . . . . . . . . . . ± 50 mA
Duration of short-circuit current at (or below) 25 (see Note 3)  . . . . . . . . . .. . . . . . . . . . . . unlimited
Continuous total dissipation  . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . .  See Dissipation Rating Table
Operating free-air temperature range, T_A : C suffix  . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  0 to 70
                                                                    I suffix  . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 to 125
                                                                    Q suffix  . . . . . . . . . . . .. . . . . . . . . . . . . . . 40 to 125
                                                                    M suffix  . . . . . . . . . . . . . . . .  . . . . . . . . . . 55 to 125
                                                                    Storage temperature range, T_stg  . . . .  . .65  to 150
Lead temperature 1,6 mm (1/16 inch) fromcase for 10 seconds: D, N, P, and PW packages  . .   260
                                                                                                     J, JG, U, and W packages   . . .  300


Description

The TLC2262 and TLC2264 are dual andquadruple operational amplifiers from TexasInstruments. Both devices exhibit rail-to-railoutput performance for increased dynamic rangein single- or split-supply applications. TheTLC226x family offers a compromise between themicropower TLC225x and the ac performance ofthe TLC227x. It has low supply current forbattery-powered applications, while still havingadequate ac performance for applications thatdemand it. The noise performance has beendramatically improved over previous generationsof CMOS amplifiers. Figure 1 depicts the low levelof noise voltage for this CMOS amplifier, whichhas only 200  m A (typ) of supply current peramplifier.

The TLC226x, exhibiting high input impedanceand low noise, are excellent for small-signalconditioning for high-impedance sources, such aspiezoelectric transducers. Because of the micro-power dissipation levels, these devices work wellin hand-held monitoring and remote-sensingapplications. In addition, the rail-to-rail output feature with single or split supplies makes this family a greatchoice when interfacing with analog-to-digital converters (ADCs). For precision applications, the TLC226xAfamily is available and has a maximum input offset voltage of 950 m V. This family is fully characterized at 5 Vand ±5 V.

The TLC2262/4 also makes great upgrades to the TLC27M2/L4 or TS27M2/L4 in standard designs. They offerincreased output dynamic range, lower noise voltage and lower input offset voltage. This enhanced feature setallows them to be used in a wider range of applications. For applications that require higher output drive andwider input voltage range, see the TLV2432 and TLV2442. If your design requires single amplifiers, please seethe TLV2211/21/31 family. These devices are single rail-to-rail operational amplifiers in the SOT-23 package.Their small size and low power consumption, make them ideal for high density, battery-powered equipment.

Parameters:

Technical/Catalog Information	TLC2262AQD
Vendor	Texas Instruments
Category	Integrated Circuits (ICs)
Packaging	Tube
Amplifier Type	General Purpose
Number of Circuits	2 - Dual
Package / Case	8-SOIC (3.9mm Width)
Slew Rate	0.55 V/s
Gain Bandwidth Product	730kHz
Current - Supply	425A
Current - Output / Channel	50mA
Voltage - Supply, Single/Dual (±)	4.4 V ~ 16 V, ±2.2 V ~ 8 V
Output Type	Rail-to-Rail
-3db Bandwidth	-
Current - Input Bias	1pA
Operating Temperature	-40°C ~ 125°C
Voltage - Input Offset	300V
Drawing Number	296; 4040047-2; D; 8
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	TLC2262AQD TLC2262AQD 296 7094 5 ND 29670945ND 296-7094-5
