TLC1514ID

Maximum Power Dissipation :
Architecture : SAR
Supply Voltage - Max : 5.5 V
Mounting Style : SMD/SMT
Packaging : Tube
Input Type : Voltage
Maximum Operating Temperature : + 85 C
Number of Converters : 1
Package / Case : SOIC-16
Resolution : 10 bit
Supply Voltage - Min : 4.5 V
Conversion Rate : 400 KSPs
Voltage Reference : Internal, External
Interface Type : 4-Wire, Serial, SPI
SNR : 59 dB
Number of ADC Inputs : 4, 3

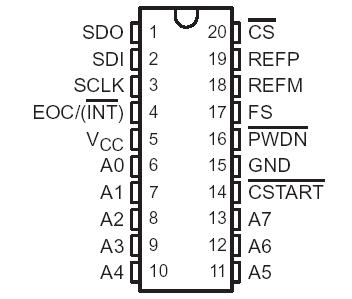

Pinout




Specifications

Supply voltage range, GND to V_CC  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.3 V to 6.5 V
Analog input voltage range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  .. . .0.3 V to V_CC + 0.3 V
Reference input voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V_CC+ 0.3 V
Digital input voltage range  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . .0.3 V to V_CC + 0.3 V
Operating virtual junction temperature range, T_J . . . . . . . . . . . . . . . . . . . . . . .40°C to 150°C
Operating free-air temperature range, T_A: TLC1514/18I . . . . . . . . . . . . . . . . . . 40°C to 85°C
Storage temperature range, T_stg  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65°C to 150°C .
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds  . . . . . . . . . . . . . . . . . .260°C .

Description

The TLC1518 and TLC1514 are a family of high-performance, 10-bit, low power, 1.4 ms, CMOS SAR analog-to-digital converters (ADC) which operate from a single 5 V power supply. These devices TLC1518 and TLC1514 have three digital inputs and a 3-state output [chip select (CS), serial input-output clock (SCLK), serial data input (SDI), and serial data output (SDO)] that provide a direct 4-wire interface to the serial port of most popular host microprocessors (SPI interface). When interfaced with a DSP, a frame sync (FS) signal is used to indicate the start of a serial data frame.

In addition to a high-speed A/D converter and versatile control capability, these devices TLC1518 and TLC1514 have an on-chip analog multiplexer that can select any analog inputs or one of three internal self-test voltages. The sample-and-hold function is automatically started after the fourth SCLK edge (normal sampling) or can be controlled by a special pin, CSTART, to extend the sampling period (extended sampling). The normal sampling period can also be programmed as short (12 SCLKs) or as long (24 SCLKs) to accommodate faster SCLK operation popular among high-performance signal processors. The TLC1518 and TLC1514 are designed to operate with very low power consumption. The power-saving feature is further enhanced with software/hardware/auto power down modes and programmable conversion speeds. The converter uses the external SCLK as the source of the conversion clock. There is a 4-V internal reference available and an optional external reference can also be used to achieve maximum flexibility.

Parameters:

Technical/Catalog Information	TLC1514ID
Vendor	Texas Instruments
Category	Integrated Circuits (ICs)
Number of Bits	10
Package / Case	16-SOIC (3.9mm Width)
Data Interface	Serial
Packaging	Tube
Sampling Rate (Per Second)	400k
Operating Temperature	-40°C ~ 85°C
Voltage Supply Source	Single
Number of Inputs and Type	4 Single-Ended, Unipolar; 2 Pseudo-Differential, Unipolar
Number of Converters	1
Power Dissipation (Max)	10mW
Drawing Number	296; 4040047-4; D; 16
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	TLC1514ID TLC1514ID 296 2180 5 ND 29621805ND 296-2180-5
