TL16PNP100A

PinoutSpecificationsSupply voltage range, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to 7 VInput voltage range at any input, VI . . . . . . . . . . . . . . . . . . .. . . . . . . . .0.5 V to 7 VOutput voltage range, VO . . . . . . . . . . . . . . . . . . . . . ...

product image

TL16PNP100A Picture
See larger image
SeekIC No. : 004520093 Detail

TL16PNP100A: PinoutSpecificationsSupply voltage range, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to 7 VInput voltage range at any input, VI . . . . . . . . . . . . . . . . ....

TL16PNP100A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TL16PNP100A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Pinout

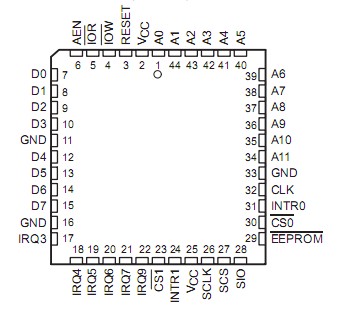

Connection Diagram


Specifications

Supply voltage range, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to 7 V
Input voltage range at any input, VI . . . . . . . . . . . . . . . . . . .. . . . . . . . .0.5 V to 7 V
Output voltage range, VO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.5 V to 7 V
Operating free-air temperature range, TA . . . . . . . . . . . . . .. . . . . . . . . . .0°C to 70°C
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . .  . . . . . . . 65°C to 150°C
Case temperature for 10 seconds: FN package . . . . . . . . . . . . . . . . . . . . . . . . 260°C
† Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.


Description

The TL16PNP100A responds to the plug-and-play (PnP) autoconfiguration process. The process puts all PnP cards in a configuration mode, isolates one PnP card at a time, assigns a card-select number (CSN), and reads the card resource-data structure from the ST93C56/66 EEPROM. After the resource requirements and capabilities are determined for all cards, the process uses the CSN to configure the card by writing to the configuration registers. The TL16PNP100A implements configuration regis-ters only for I/O applications with two logical devices, and DMA application support is not provided. Finally, the process activates the TL16PNP100A card and removes it from configuration mode. After the configuration process, the logic function can then start responding to industry standard architecture (ISA) bus cycles. The controller disables the EEPROM interface after the configuration is complete to allow another on-board controller to access the EEPROM.
