TL16C2550

Features:

• Programmable Auto-RTS and Auto-CTS
• In Auto-CTS Mode, CTS Controls Transmitter
• In Auto-RTS Mode, RCV FIFO Contents and Threshold Control RTS
• Serial and Modem Control Outputs Drive a RJ11 Cable Directly When Equipment Is on the Same Power Drop
• Capable of Running With All Existing TL16C450 Software
• After Reset, All Registers Are Identical to the TL16C450 Register Set
• Up to 24-MHz Clock Rate for up to 1.5-Mbaud Operation With V CC = 5 V
• Up to 20-MHz Clock Rate for up to 1.25-Mbaud Operation With V CC = 3.3 V
• Up to 16-MHz Clock Rate for up to 1-Mbaud Operation With V CC = 2.5 V
• In the TL16C450 Mode, Hold and Shift Registers Eliminate the Need for Precise Synchronization Between the CPU and Serial Data
• Programmable Baud Rate Generator Allows Division of Any Input Reference Clock by 1 to (2 16 - 1) and Generates an Internal 16 * Clock
• Standard Asynchronous Communication Bits (Start, Stop, and Parity) Added to or Deleted From the Serial Data Stream
• 5-V, 3.3-V, and 2.5-V Operation
• Independent Receiver Clock Input
• Transmit, Receive, Line Status, and Data Set Interrupts Independently Controlled
• Fully Programmable Serial Interface Characteristics:
  5-, 6-, 7-, or 8-Bit Characters
  Even-, Odd-, or No-Parity Bit Generation and Detection
  1-, 1 1/2-, or 2-Stop Bit Generation
  Baud Generation (dc to 1 Mbit/s)
• False-Start Bit Detection
• Complete Status Reporting Capabilities
• 3-State Output TTL Drive Capabilities for Bidirectional Data Bus and Control Bus
• Line Break Generation and Detection
• Internal Diagnostic Capabilities:
  Loopback Controls for Communications Link Fault Isolation
  Break, Parity, Overrun, and Framing Error Simulation
• Fully Prioritized Interrupt System Controls
• Modem Control Functions ( CTS , RTS , DSR , DTR , RI , and DCD )
• Available in 48-Pin TQFP (PFB), 44-Pin PLCC (FN), or 32-Pin QFN (RHB) Packages
• Pin Compatible with TL16C752B (48-Pin Package)


Application

• Point-of-Sale Terminals
• Gaming Terminals
• Portable Applications
• Router Control
• Cellular Data
• Factory Automation

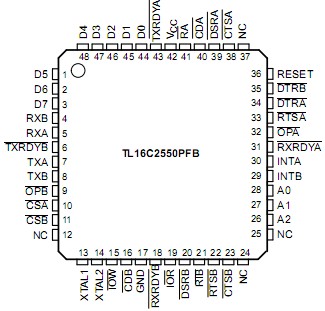

Pinout




Specifications

	UNIT
Supply voltage range, V CC (see (2) )	-0.5 V to 7 V
Input voltage range at any input, V I	-0.5 V to 7 V
Output voltage range, VO	-0.5 V to 7 V
Operating free-air temperature, T A , TL16C2550	0 ° C to 70 ° C
Operating free-air temperature, T A , TL16C2550I	-40 ° C to 85 ° C
Storage temperature range, T stg	-65 ° C to 150 ° C
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds	260 ° C

(1) Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
(2) All voltage values are with respect to V _SS .


Description

The TL16C2550 is a dual universal asynchronous receiver and transmitter (UART). It incorporates the functionality of two TL16C550D UARTs, each UART having its own register set and FIFOs. The two UARTs share only the data bus interface and clock source, otherwise they operate independently. Another name for the uart function is Asynchronous Communications Element (ACE), and these terms will be used interchangeably. The bulk of this document will describe the behavior of each ACE, with the understanding that two such devices are incorporated into the TL16C2550.

Each ACE is a speed and voltage range upgrade of the TL16C550C, which in turn is a functional upgrade of the TL16C450. Functionally equivalent to the TL16C450 on power up or reset (single character or TL16C450 mode), each ACE can be placed in an
alternate FIFO mode. This relieves the CPU of excessive software overhead by buffering received and to be transmitted characters. Each receiver and transmitter store up to 16 bytes in their respective FIFOs, with the receive FIFO including three additional bits per byte for error status. In the FIFO mode, a selectable autoflow control feature can significantly reduce software overload and increase
system efficiency by automatically controlling serial data flow using handshakes between the RTS# output and CTS# input, thus eliminating overruns in the receive FIFO.

Each ACE performs serial-to-parallel conversions on data received from a peripheral device or modem and stores the parallel data in its receive buffer or FIFO, and each ACE performs parallel-to-serial conversions on data sent from its CPU after storing the parallel
data in its transmit buffer or FIFO. The CPU can read the status of either ACE at any time. Each ACE includes complete modem control capability and a processor interrupt system that can be tailored to the application.

Each ACE includes a programmable baud rate generator capable of dividing a reference clock with divisors of from 1 to 65535, thus producing a 16 × internal reference clock for the transmitter and receiver logic. Each ACE accommodates up to a 1.5-Mbaud serial data rate (24-MHz input clock). As a reference point, that speed would generate a 667-ns bit time and a 6.7- µ s character time (for 8,N,1 serial data), with the internal clock running at 24 MHz.

Each ACE has a TXRDY# and RXRDY# output that can be used to interface to a DMA controller.
