TIC236

Features: High Current Triacs12 A RMSGlass Passivated Wafer400 V to 800 V Off-State VoltageMax IGT of 50 mA (Quadrants 1 - 3)PinoutSpecifications RATING SYMBOL VALUE UNIT Repetitive peak off-state voltage (see Note 1) TIC236DTIC236MTIC236STIC236N VDRM 400600700800 V Full-cycle RM...

product image

TIC236 Picture
See larger image
SeekIC No. : 004519110 Detail

TIC236: Features: High Current Triacs12 A RMSGlass Passivated Wafer400 V to 800 V Off-State VoltageMax IGT of 50 mA (Quadrants 1 - 3)PinoutSpecifications RATING SYMBOL VALUE UNIT Repetitive peak ...

TIC236 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TIC236
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

High Current Triacs
12 A RMS
Glass Passivated Wafer
400 V to 800 V Off-State Voltage
Max IGT of 50 mA (Quadrants 1 - 3)

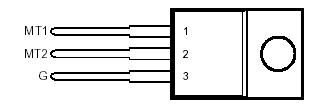

Pinout

Connection Diagram


Specifications

RATING SYMBOL VALUE UNIT
Repetitive peak off-state voltage (see Note 1) TIC236D
TIC236M
TIC236S
TIC236N		 VDRM 400
600
700
800		 V
Full-cycle RMS on-state current at (or below) 70°C case temperature (see Note 2) IT(RMS) 12 A
Peak on-state surge current full-sine-wave at (or below) 25°C case temperature (see Note3) ITSM 100 A
Peak gate current IGM ±1 A
Operating case temperature range TC -40 to+110 °C
Storage temperature range Tstg -40 to+125 °C
Lead temperature 1.6 mm from case for 10 seconds TL 230 °C
