Product Details

Description



Features:

 Sensitive Gate Triacs
2.5 A RMS
Glass Passivated Wafer
400 V to 800 V Off-State Voltage
Max IGT of 5 mA (Quadrant 1)

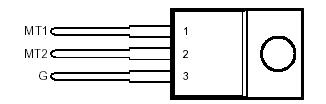

Pinout

Connection Diagram


Specifications

RATING SYMBOL VALUE UNIT
Repetitive peak off-state voltage (see Note 1) TIC201D
TIC201M
TIC201S
TIC201N		 VDRM








 400
600
700
800		 V
Full-cycle RMS on-state current at (or below) 85°C case temperature (see Note 2) IT(RMS) 2.5 A
Peak on-state surge current full-sine-wave (see Note 3) ITSM 12 A
Peak on-state surge current half-sine-wave (see Note 4) ITSM 14 A
Peak gate current IGM ±0.2 A
Peak gate power dissipation at (or below) 85°C case temperature (pulse width £ 200 s) PGM 1.3 W
Average gate power dissipation at (or below) 85°C case temperature (see Note 5) PG(AV) 0.3 W
Operating case temperature range TC -40 to +110 °C
Storage temperature range Tstg -40 to +125 °C
Lead temperature 1.6 mm from case for 10 seconds TL 230 °C
