Product Details

Description

Pinout

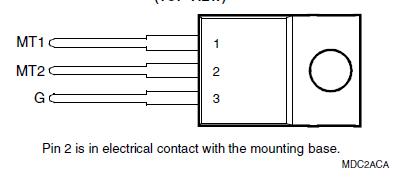

Connection Diagram

Specifications

RATING		SYMBOL	VALUE	UNIT
Repetitive peak off-state voltage (see Note 1)	TIC216D TIC216M TIC216S TIC216N	V_DRM	400 600 700 800	V
Full-cycle RMS on-state current at (or below) 70°C case temperature (see Note 2)		I_T(RMS)	6	A
Peak on-state surge current full-sine-waveat (or below) 25°C case temperature (see Note 3)		I_TSM	60	A
Peak gate current		I_GM	±1	A
Peak gate power dissipation at (or below) 85°C case temperature (pulse width 200 s)		P_GM	2.2	W
Average gate power dissipation at (or below) 85°C case temperature (see Note 4)		P_G(AV)	0.9	W
Operating case temperature range		T_C	-40 to +110	°C
Storage temperature range		T_stg	-40 to +125	°C
Lead temperature 1.6 mm from case for 10 seconds		T_L	230	°C
