THS8083A95

Features: Analog Channels- Three digitizing channels, each with independently controllable clamp, PGA, and ADC-Clamp: 256-step programmable RGB or YUV clamping during external or internal clamp timing window-PGA: 6-bit coarse/5-bit fine programmable gain amplifier-ADC: 8 bit 95 MSPS A/D converter-...

product image

THS8083A95 Picture
SeekIC No. : 004518947 Detail

THS8083A95: Features: Analog Channels- Three digitizing channels, each with independently controllable clamp, PGA, and ADC-Clamp: 256-step programmable RGB or YUV clamping during external or internal clamp timi...

floor Price/Ceiling Price

Part Number:
THS8083A95
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

 Analog Channels
- Three digitizing channels, each with independently controllable clamp, PGA, and ADC
-Clamp: 256-step programmable RGB or YUV clamping during external or internal clamp timing window
-PGA: 6-bit coarse/5-bit fine programmable gain amplifier
-ADC: 8 bit 95 MSPS A/D converter
-Composite sync: Integrated sync-on-green/
  sync-on-luminance extraction from green/luminance channel or from dedicated input
-Support for dc and ac-coupled input signals



Pinout

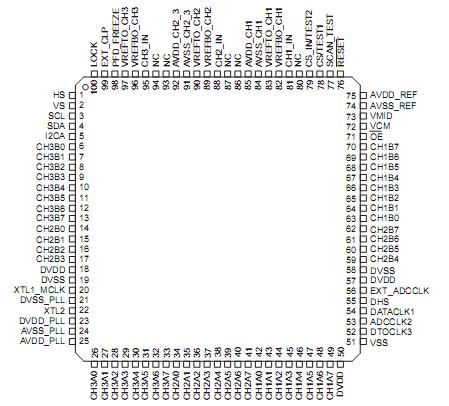

  Connection Diagram


Description

   The THS8083A95 is a complete solution for digitizing video and graphic signals in RGB or YUV/YCbCr color spaces.
The device supports pixel rates up to 95 MHz. Therefore, it can be used for PC graphics digitizing up to the VESA
standard of XGA (1024 X768) resolution at 75Hz screen refresh rate, and in video environments for the digitizing
of digital TV formats, including HDTV.

    The THS8083A95 is powered from a single 3.3-V supply and integrates a triple high-performance A/D converter with clamping functions and variable gain, independently programmable for each channel. The clamp timing window isprovided by an external pulse or can be generated internally. The programmable gain amplifiers consist of coarse
and fine gain control blocks. The THS8083A95 includes slicing circuitry on the Y or G input to support sync-on-green
or sync-on-luminance extraction.
