THS8083

Features: • Analog Channels Three digitizing channels, each with independently controllable clamp, PGA, and ADC. Clamp: 256-step programmable RGB or YUV clamping during external or internal clamp timing window PGA: 6-bit coarse/5-bit fine programmable gain amplifier ADC: 8 bit 80 MSPS (T...

product image

THS8083 Picture
SeekIC No. : 004518945 Detail

THS8083: Features: • Analog Channels Three digitizing channels, each with independently controllable clamp, PGA, and ADC. Clamp: 256-step programmable RGB or YUV clamping during external or internal ...

floor Price/Ceiling Price

Part Number:
THS8083
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Analog Channels Three digitizing channels, each with independently controllable clamp, PGA, and ADC. Clamp: 256-step programmable RGB or YUV clamping during external or internal clamp timing window PGA: 6-bit coarse/5-bit fine programmable gain amplifier ADC: 8 bit 80 MSPS (THS8083) or 95 MSPS (THS8083-95) A/D converter  Composite Sync: Integrated sync-on-green/sync-on-luminance extraction Support for ac-coupled input signals
• PLL Fully integrated digital PLL (including loop filter) for pixel clock generation 10-80 MHz (THS8083) or 10-95 MHz (THS8083-95) pixel clock generation from reference input Adjustable PLL loop bandwidth for minimum jitter or fast acquisition/wide capture range modes 5-bit programmable subpixel accuracy positioning of sampling phase Noise gates on HS input to avoid false PLL updating
• Output Formatter Single and double pixel width output data bus for reduced board clock frequency and EMI Support for 4:4:4 and 4:2:2 (ITU.BT601 style) output modes to reduce board traces to video ASICs Dedicated DATACLK1 output for easy latching of output data
• System Industry-standard normal/fast I2C interface with register readback capability Support for input format detection via integrated monitoring of HS, VS, and pixel clock frequencies Support for multidevice operation (master/slave operation for SXGA resolution) Space-saving TQFP-100 pin package Thermally-enhanced PowerPADE package for better heat dissipation
• Applications LCD desktop monitors and LCD or DMD-based projection systems Videoconferencing PCTV set-top boxes, digital TV sets, and multimedia cards
Scan rate/image resolution converters Video/graphics digitizing equipment (RGB or YUV-based)




Pinout

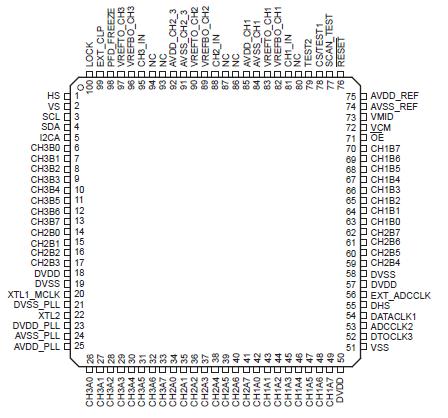

  Connection Diagram


Specifications

Supply voltage range: Analog supplies (see Note 1) to AGND,
Digital supplies (see Note 2) to DGND . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 to 4.5 V
Analog supplies to digital supplies, AGND to DGND . . . . . . . . . . . . . . . 0.5 to 0.5 V
Digital input voltage range to DGND, VI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 to DVDD + 0.5 V
Analog input voltage range to AGND, VI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 to AVDD + 0.5 V
Bandgap reference to AGND (see Note 3) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 to AVDD + 0.5 V
Reference voltage (VREFTO_CHx,VREFBO_CHx) input range to AGND, Vref
(see Note 4) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 to AVDD + 0.5 V
Operating free-air temperature range, TA: THS8083CPZP and THS8083-95CPZP . . . . . . . . . . 0°C to 70°C
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55°C to 150°C


† Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to absolute-maximum-rated  onditions for extended periods may affect device reliability.

NOTES:
1. AVDD_PLL, AVDD_REF, AVDD_CH1, AVDD_CH2_3
2. DVDD_PLL, DVDD
3. Only input in case PWDN_BGAP=1
4. Only input in case PWDN_REF=1



Description

The THS8083 contains three identical analog channels that are independently programmable. Each channel consists
of a clamping circuit, a programmable gain amplifier, and an A/D converter.
