Product Details

Description



Features:

 Low Noise: Vn = 1.1 nV/ Hz, Noise Figure = 9 dB
 Low Distortion: HD2 = 65 dBc, HD3 = 61 dBc at 32 MHz IMD3 = 62 dBc, OIP3 = 21 dBm at 70 MHz
 300 MHz Bandwidth
 Continuously Variable Gain Range: 11.6 dB to 46.5 dB
 Gain Slope: 38.8 dB/V
 Fully Differential Input and Output
 Output Common-Mode Voltage Control
 Output Voltage Limiting



Application

 Time Gain Amplifiers in Ultra Sound, Sonar, and Radar
 Automatic Gain Control in Communication and Video
 System Gain Calibration in Communications
 Variable Gain in Instrumentation




Pinout

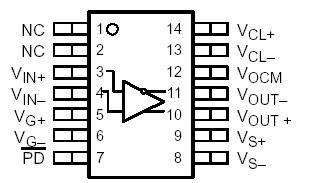

Connection Diagram


Specifications


THS7530
Supply voltage, VS+ Vs
5.5 V
Input voltage, VI
±VS
Output current, IO (2)
65 mA
Differential input voltage, VID
±4 V
Continuous power dissipation
See Dissipation Rating Table
Maximum junction temperature, TJ
150°C
Maximum junction temperature for long term stability, TJ
125°C
Operating free-air temperature range, TA
40°C to 85°C
Storage temperature range, Tstg
65°C to 150°C
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds
300°C
ESD HBM
3000 V
CDM
1500 V
MM
200 V



Description

The THS7530 is fabricated using Texas Instruments' state-of-the-art BiCom III SiGe complementary bipolar process. The THS7530 is a dc-coupled wide bandwidth amplifier with voltage-controlled gain. The amplifier has high impedance differential inputs and low impedance differential outputs with high bandwidth gain control, output common mode control, and output voltage clamping.

Signal channel performance of THS7530 is exceptional with 300-MHz bandwidth, and third harmonic distortion of 61 dBc at 32 MHz with 1 VPP output into 400 Ω.

Gain control of THS7530 is linear in dB with 0 V to 0.9 V varying the gain from 11.6 dB to 46.5 dB with 38.8-dB/V gain slope.

Output voltage limiting of THS7530 is provided to limit the output voltage swing, and prevent saturating following stages.

The THS7530 is characterized for operation over the industrial temperature range: 40°C to 85°C.
