THS7001CPWP

Number of Channels :
Common Mode Rejection Ratio (Min) :
Available Set Gain :
Input Voltage Range (Max) :
Input Offset Voltage :
Supply Current :
Maximum Power Dissipation :
Mounting Style : SMD/SMT
Maximum Operating Temperature : + 70 C
Packaging : Tube
Operating Supply Voltage : 33 V
Minimum Operating Temperature : 0 C
Package / Case : HTSSOP-20

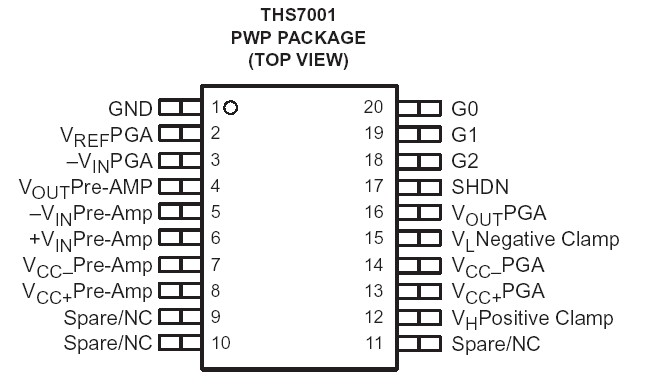

Pinout




Specifications

Supply voltage, VCC  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . .±16.5 V
Input voltage, VI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±VCC
Output current, IO (preamp) (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . .150 mA
IO (PGA) (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . ............ . . . . . . . . .85 mA
Differential input voltage, VID . . . . . . . . . . . . . . .  . . . . . . . . . . . . . . . . . . . . . . .±4 V
Total continuous power dissipation at (or below) TA = 25°C (see Note 2):
                                                                                         THS7001 . . . . . .  . . 3.83 W
                                                                                         THS7002 ..............  .4.48 W
Maximum junction temperature, TJ . . . . . . . . . . . . . . . . . . . . . . . . ......... . . . . .150°C
Operating free-air temperature, TA:C-suffix . . . . . . . . . . . . . . . . . . . . . .0°C to 70°C
I-suffix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40°C to 85°C
Storage temperature, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . .65°C to 125°C
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds . . . . . . .  . . . .300°C
† Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
NOTES: 1. The THS7001 and THS7002 incorporates a PowerPAD on the underside of the chip. The PowerPAD acts as a heatsink and must be connected to a thermal dissipation plane for proper power dissipation. Failure to do so can result in exceeding the maximum junction temperature, which could permanently damage the device. See the Thermal Information section of this document for more information about PowerPAD technology.
2. For operation above TA = 25°C, derate the THS7001 linearly to 2 W at the rate of 30.6 mW/°C and derate the THS7002 linearly to 2.33 W at the rate of 35.9 mW/°C.

Description

The THS7001 (single) and THS7002 (dual) are high-speed programmable-gain amplifiers, ideal for applications where load impedance can often vary. Each channel on THS7001 and THS7002 consists of a separate low-noise input preamp and a programmable gain amplifier (PGA). The preamp THS7001 and THS7002 is a voltage-feedback amplifier offering a low 1.7-nV//Hz voltage noise with a 100-MHz (3 dB) bandwidth. The output pin of the preamp is accessible so that filters can be easily added to the amplifier.

The 3-bit digitally-controlled PGA provides a 22-dB to 20-dB attenuation/gain range with a 6-dB step resolution. In addition, the PGA THS7001 and THS7002 provides both high and low output clamp protection to prevent the output signal from swinging outside the common-mode input range of an analog-to-digital converter. The PGA provides a wide 70-MHz (3 dB) bandwidth, which remains relatively constant over the entire gain/attenuation range. Independent shutdown control is also provided for power conservation and multiplexing. THS7001 and THS7002 operate over a wide ±4.5-V to ±16-V supply voltage range.

Parameters:

Technical/Catalog Information	THS7001CPWP
Vendor	Texas Instruments
Category	Integrated Circuits (ICs)
Packaging	Tube
Amplifier Type	Programmable Gain
Number of Circuits	1 - Single
Package / Case	20-TSSOP Exposed Pad, 20-eTSSOP, 20-HTSSOP
Slew Rate	85 V/s
Gain Bandwidth Product	70MHz
Current - Supply	7mA
Current - Output / Channel	95mA
Voltage - Supply, Single/Dual (±)	9 V ~ 32 V, ±4.5 V ~ 16 V
Output Type	-
-3db Bandwidth	100MHz
Current - Input Bias	2.5A
Operating Temperature	0°C ~ 70°C
Voltage - Input Offset	1000V
Drawing Number	296; 4073225; PWP; 14, 16, 20, 24, 28
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	THS7001CPWP THS7001CPWP 296 2411 5 ND 29624115ND 296-2411-5
